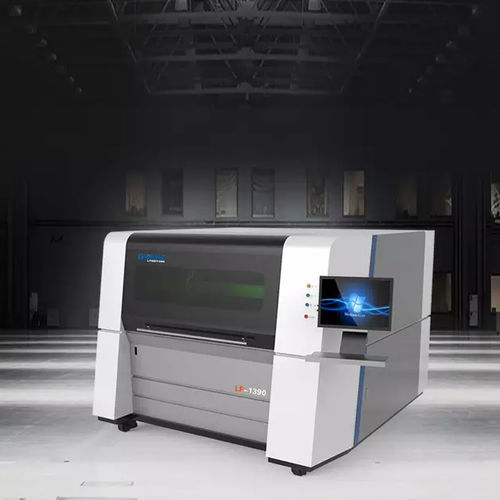

Fiber laser cutting machine LF1390

for stainless steelfor metalfor thin sheet metal

Aerospace-grade aluminum gantry (third generation)
Manufactured to aerospace standards by 4300-ton press extrusion and subjected to aging treatment to achieve 6061 T6 strength. The aviation-grade aluminum gantry provides low weight, good toughness, corrosion resistance and improved processing speed.

Safety and enclosed fume extraction

• Fully enclosed machine design.
• Observation window fitted with European CE standard laser protective glass.
• Cutting fumes are filtered inside the enclosure to minimize emissions and environmental impact.

Dual-rail and dual-driver Y-axis design
Both sides of the Y-axis use dual guide rails and dual ball-screw drivers to prevent screw bending and cutting-line deformation, ensuring linearity and arc accuracy during high-speed cutting.

Automatic focusing (no manual operation)

• No manual focusing: Control software adjusts the focusing lens automatically for piercing and cutting plates of varying thickness; automatic adjustment is up to ten times faster than manual focusing.
• Wide adjustment range: -10 mm to +10 mm, accuracy 0.01 mm; suitable for plates from 0 to 20 mm thickness.
• Extended component life: Collimator and focus lenses feature water-cooled heat sinks to reduce cutting-head temperature and extend service life.

Transmission and precision
G.WEIKE fiber laser cutting machines are equipped with Panasonic servo motors (Japan), imported TBI dual-driver ground ball screws on the Y-axis, imported TBI ground ball screw on the X-axis and Hiwin linear guides. Repeat positioning accuracy up to ±0.02 mm, maximum cutting acceleration 0.5G and expected working life over 10 years.

Industry applications
LF1390 is designed for high-precision cutting and is suitable for sectors with strict accuracy requirements, including machinery, microelectronics, glass processing and electronics. Suitable for cutting thin metal sheets such as stainless steel, galvanized sheet and electroplated plates.

Technical parameters
Machine model | LF1390
Laser power | 500W, 800W, 1000W, 2000W, 3000W (optional)
Working area | 1300 × 900 mm
Repeat positioning accuracy | ±0.02 mm
Maximum speed | 40 m/min
Maximum acceleration | 0.5G
Transmission mode | Precision ground ball-screw drive
Power supply | 220V, 50/60Hz, 60A

Specifications / Technical specifications

• Machine model: LF1390
• Laser power: 500W, 800W, 1000W, 2000W, 3000W (optional)
• Working area: 1300 × 900 mm
• Repeat positioning accuracy: ±0.02 mm
• Maximum speed: 40 m/min
• Maximum acceleration: 0.5G
• Transmission mode: Precision ground ball-screw drive
• Power supply: 220V / 50Hz / 60Hz / 60A
