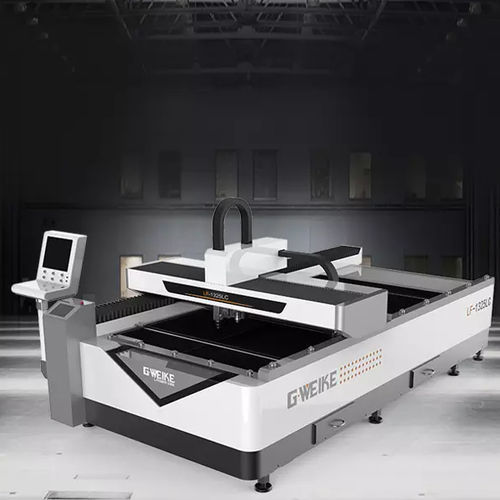

CO2 laser cutting machine LF1325LC
fiber laserfor PMMAfor acrylics

CO2 laser cutting machine - LF1325LC - GWEIKE LASER - fiber laser / for PMMA / for acrylics
CO2 laser cutting machine - LF1325LC - GWEIKE LASER - fiber laser / for PMMA / for acrylics
CO2 laser cutting machine - LF1325LC - GWEIKE LASER - fiber laser / for PMMA / for acrylics - image - 2
Add to favorites
Compare this product

Characteristics

Technology
fiber laser, CO2 laser
Material
for metal, for stainless steel, for carbon steel, for copper, for brass, for titanium, for PMMA, for acrylics, for MDF
Product handled
for metal sheets, sheet, die board
Configuration
large-format, gantry type, 2D
Other characteristics
high-precision, with servo-motor, combined, autofocus system
X travel

2,500 mm
(98.43 in)

Y travel

1,300 mm
(51.18 in)

Maximum cutting height

20 mm
(0.8 in)

Cutting speed

30 m/min

Laser power

Max.: 500 W

Min.: 150 W

Repeatability

0.02 mm
(0.0008 in)

Power supply

220 V

Description

Model
LF1325LC

Overview
The LF1325LC is a compact, dual-use laser cutting machine designed for cutting both metal and non-metal materials. It integrates aerospace-grade structural components and is optimized for workshop use and small sheet metal processing.

Key Features
  • 3rd-generation aviation-grade aluminum gantry produced by 4300-ton press extrusion and aging treatment, achieving strength comparable to 6061 T6 for improved toughness, light weight and corrosion resistance to increase processing speed.
  • Dual-use technology capable of cutting a broad range of materials, including metals and non-metals.
  • Auto-focus cutting head ensuring stable and consistent cutting performance.
  • Cost-efficient footprint: one machine reduces electricity consumption by over 30% and space requirement by up to 50%, improving workshop productivity.
  • High transmission precision with imported TBI ball screw, Delta servo motor and Hiwin guide rail; positioning accuracy down to ±0.02 mm to secure cutting quality.


Applications
The LF1325LC is suitable for cutting sheet metal and non-metallic materials such as stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel-titanium alloy, Inconel, titanium alloy, acrylic, MDF, die board and Plexiglas.

Technical Parameters
Machine model: LF1325LC
Working area: 2500 × 1300 mm
Laser power: 500 W (fiber laser) and 150 W (CO2 laser)
Cutting thickness: Up to 20 mm (depending on material)
Positioning accuracy: ±0.02 mm
Max running speed: 30 m/min
Operating temperature: 0°C–40°C
Transmission: Imported TBI ball screw
Power supply: 220 V, 50 Hz

Characteristics / Technical specifications
  • Machine model: LF1325LC
  • Working area: 2500 × 1300 mm
  • Laser power: 500 W (Fiber) and 150 W (CO2)
  • Cutting thickness: Up to 20 mm (depending on material)
  • Positioning accuracy: ±0.02 mm
  • Maximum running speed: 30 m/min
  • Operating temperature range: 0°C to 40°C
  • Transmission components: Imported TBI ball screw, Hiwin guide rail, Delta servo motor
  • Power supply: 220 V, 50 Hz
