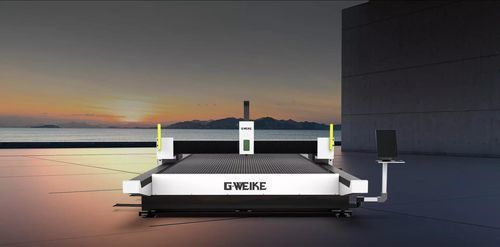

Fiber laser cutting machine SE series

for steelfor metalsheet metal

Overview
SE Series large format fiber laser cutting machine designed for high-efficiency cutting of large sheet metal. Configurable bed sizes, enhanced safety features and an intelligent operating system simplify use and increase productivity.

Customizable Bed Size
Super large format with customizable bed dimensions. Supports full-board and multi-sheet loading to effectively increase production throughput.

Segmented bed
Segmented bed structure enables more size customization and secondary stress-relief annealing, improving bed stability and cutting precision.

Safety light curtain protection
Safety light curtains mounted on both sides of the crossbeam provide all-around protection for operators and help prevent accidents.

Intelligent system
Simple, easy-to-learn operating system reduces operator training time and facilitates daily operation.

Air pressure DA correction
The outlet air pressure can accurately reach the set value ensuring stable cutting conditions.

Sample
Images and processing samples illustrate typical cutting results and recommended machine setup.

Applications

• Agricultural machinery
• Steel structures
• Tower industry
• Shipbuilding
• Mining machinery
• Sheet metal processing
• Mechanical equipment
• Construction machinery

Technical Parameters
Key technical parameters and typical configurations are listed below.

Technical Specifications

• Models: 14031SE (SE Series); 12528SE (SE Series); 8025SE (SE Series)
• Working area: 14000×3100 mm (14031SE); 12500×2800 mm (12528SE); 8000×2500 mm (8025SE)
• Laser power options: 30000 W / 20000 W / 15000 W / 12000 W
• X/Y axis positioning accuracy: ±0.05 mm
• X/Y axis repeat positioning accuracy: ±0.03 mm
• Power rated voltage and frequency: 380 V 50 Hz / 60 Hz
