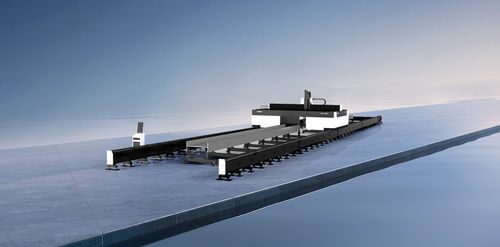

Laser cutting machine GKS-12015S

for steelsheet metalprofile

Overview
Professional Shaped Steel Laser Cutting Machine designed for shaped steel processing with features for cutting, perforating, beveling, locking, marking and lining up in a single equipment.

Key design features

• All-in-one Design: Cutting, perforating, beveling, locking, marking and lining up all done in one machine.
• Plate & section steel dual-use: Supports section steel and plate processing to meet various processing needs.
• Gantry Bed Structure: Stable and reliable with improved dynamic performance; gantry mobile processing for flexible cutting actions.
• Tekla One-click Nesting: Supports TEKLA structural 3D modeling data file cutting to enable intelligent and rapid nesting without separate drawings.
• Real-time Compensation: Real-time compensation capabilities to improve cutting accuracy.
• Unique Cutting Table Instant Adjustment Mechanism: Quick adjustments for cutting different width steel profiles and rapid slag removal after perforation to improve quality and efficiency.
• Extra-large processing area: Modular design with double workstation up to 25.5 meters long for large-scale processing.
• 3D 5-axis linkage + large swing axis: Adaptable to irregular and three-dimensional cutting such as straight cutting, bevel cutting, and half-edge flat cutting.

Applications
Steel structure construction, engineering machinery, metal processing, bridge tunnels, vehicle frames, port machinery.

Technical Parameters (table)
Machine model
GKS-12015S

Laser power
12000W / 20000W / 30000W

X-axis / Y-axis / Z-axis travel
3500mm / 28000mm / 1050mm

Maximum acceleration
0.5G

X/Y axis positioning accuracy
±0.25mm/m

X/Y axis repeated positioning accuracy
±0.05mm

Power specifications
380V/50Hz

Caractéristiques / spécifications techniques

• Model: GKS-12015S
• Available laser power options: 12000W, 20000W, 30000W
• Travel (X / Y / Z): 3500mm / 28000mm / 1050mm
• Maximum acceleration: 0.5G
• Positioning accuracy (X/Y): ±0.25mm/m
• Repeated positioning accuracy (X/Y): ±0.05mm
• Power supply: 380V / 50Hz
• Functions: Cutting, perforating, beveling, locking, marking, alignment
• Structure: Gantry bed for stable dynamic performance
• Special features: Tekla one-click nesting, instant cutting table adjustment mechanism, 3D 5-axis linkage and large swing axis capability
