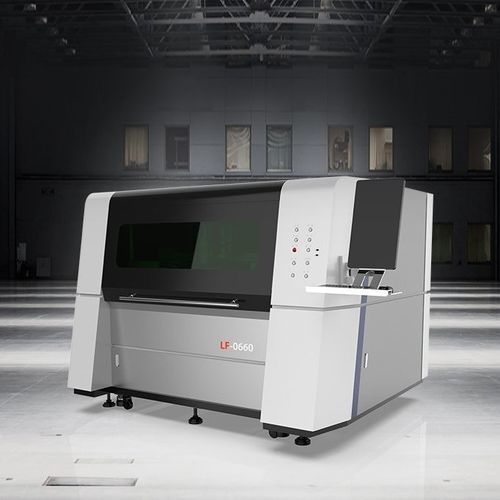

Fiber laser cutting machine LF0660

for metalsheet metalwith control software

Product name
GWK Desktop Fiber Laser Cutting Machine

Auto Focus Laser Cutting Head

• Without Manual Focusing The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
• Bigger Adjustment Range Adjustment range -10 mm ~ +10 mm, precision 0.01 mm, suitable for 0 ~ 20 mm different types of plates.
• Long Service Life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Dual Rail and Dual Driver Design
To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

Machine Advantage

• Safety and No Pollution With a fully enclosed design. The observation window adopts an European CE Standard laser protective glass. The smoke produced by cutting can be filtrated inside; it is non-polluting and environmentally friendly.
• IPAD Designing Screen Use the high definition toughened glass screen, more exquisite and delicate, the operation is smoother.

Industry Applications
G.WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail. The positioning accuracy of the machine tool can be 0.02 mm and the cutting acceleration is 0.5G. The working life is more than 10 years.

Technical Parameters
Machine model: LF0660
Laser power: 500W, 800W, 1000W, 2000W, 3000W (Optional)
Dimensions: 1835*2250*1630 mm
Working area: 600*600 mm
Repeat positioning accuracy: ±0.02 mm
Maximum speed: 40 m/min
Max. acceleration: 0.5G
Voltage and frequency: 220V/380V 50Hz/60Hz

Caractéristiques / spécifications techniques

• Machine model: LF0660
• Laser power options: 500W, 800W, 1000W, 2000W, 3000W (Optional)
• Dimensions: 1835 x 2250 x 1630 mm
• Working area: 600 x 600 mm
• Repeat positioning accuracy: ±0.02 mm
• Maximum speed: 40 m/min
• Maximum acceleration: 0.5G
• Voltage and frequency: 220V/380V 50Hz/60Hz
• Auto focus head: adjustment range -10 mm to +10 mm, precision 0.01 mm
• Construction features: dual rail and dual driver Y-axis design; Japanese Panasonic servo motor; TBI grinding ball screws; Hiwin guide rails
