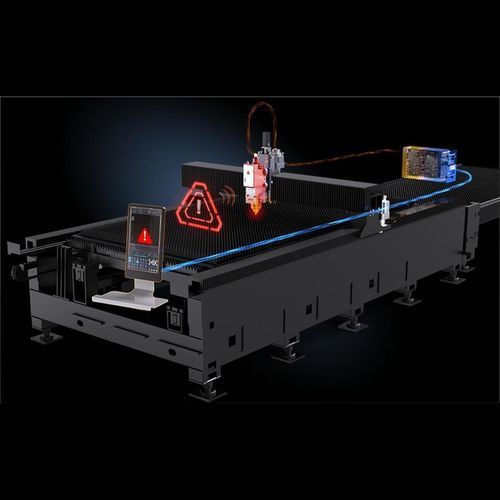

Laser cutting machine GA III

for aluminumfor metalfor brass

Overview
The GWEIKE GA III is engineered for stable, high-precision sheet-metal production. A five-year warranty covers five core components — laser source, cutting head, control system, servo motor and chiller — reducing long-term maintenance risk and supporting predictable operation.

Warranty Highlights

• The five-year core-component warranty demonstrates confidence in long-term performance.
• Coverage for critical components reduces uncertainty in extended production cycles.
• Extended coverage supports lower maintenance risk and easier production planning; warranty terms are subject to the sales contract.

Five Core Components

• Laser source
• Laser head (cutting head)
• Control system
• Servo motor
• Chiller (water chiller)

Standard Container Transport
The GA III can be shipped in a 20GP standard container to reduce freight costs where logistics and destination permit.

Laser Source Enclosure
A temperature- and humidity-controlled enclosure maintains a stable environment for the laser source and helps ensure consistent long-term output. Multi-stage back-reflection protection safeguards the source when processing reflective materials such as aluminum and brass.

Intelligent Laser Cutting Head

• Real-time gas-pressure monitoring maintains stable cutting conditions and consistent cut quality.
• Optical-path temperature monitoring provides early warnings to protect the cutting-head optical system.

Piercing Slag Removal
The slag-removal function clears debris produced during thick-plate piercing, helping maintain stable focus position and improving subsequent cutting quality.

Bus Control System and Servo Motor
A bus-based control system enables fast command transmission, coordinated servo response and simplified fault diagnosis for reliable motion control.

Intelligent Laser Shutoff Control
Intelligent laser shutoff and pressure adjustment improve edge smoothness and preserve surface integrity at the end of cutting paths.

Visual Safety Monitoring
Camera-based monitoring detects personnel entering the designated operating area and can trigger an immediate machine stop for enhanced safety.

Integrated Component Performance

• Component matching maximizes overall machine performance.
• Coordinated component design reduces failures at connection points.
• Unified component responsibility simplifies diagnostics and after-sales support.
• Minimized handling and reduced repeated disassembly protect components from contamination.

Technical Parameters

• Machine model: GA III Series
• Laser power: 3000W / 6000W / 12000W
• Working area options: 6050 × 2530 mm; 4050 × 2030 mm; 3050 × 1500 mm
• X/Y axis positioning accuracy: ±0.03 mm
• X/Y axis repeat positioning accuracy: ±0.02 mm
• Maximum running speed: 120 m/min
• Maximum acceleration: 1.5G
