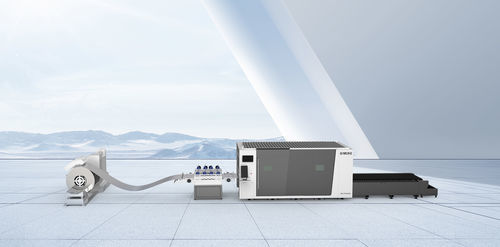

Sheet metal production line GKS-CPLS6015B

automaticcontinuousflexible

Product Overview
The GKS-CPLS series is an automated coil-fed flexible production line for industrial sheet processing. It integrates continuous unwinding, leveling, high-precision fiber laser cutting and intelligent material handling to support batch production of variable-shaped parts with minimal manual intervention.

Key Features

• Flexible production: Import processing drawings to produce different part geometries and support mixed-batch manufacturing.
• High automation: Automatic unwinding, leveling, cutting and intelligent loading/unloading reduce labor requirements.
• Continuous workflow: Coil conveying with synchronous feeding and discharge provides seamless cutting for improved throughput.

Application industries

• Automotive manufacturing
• Office furniture
• Electrical industry
• Chassis and cabinet production
• Elevator manufacturing
• Kitchenware production
• Building curtain wall and façade panels
• General machinery manufacturing
• Tool and die industry
• Rail transportation components
• Medical equipment

Technical Parameters

• Brand: GWEIKE
• Model options: GKS-CPL3015B, GKS-CPLS6015B
• Laser power: 1000–6000 W
• Working area: 3000×1500 mm (CPL3015B) / 6000×1500 mm (CPLS6015B)
• Coil inner diameter: Ø508–Ø610 mm
• Coil width: 500–1500 mm
• Material thickness: 0.8–3 mm (carbon steel), 0.8–2 mm (stainless steel)
• Max coil outer diameter: Ø1500 mm
• Min coil outer diameter: Ø800 mm
• Max material weight: 10 T
• Feeding speed: 0–20 m/min
• X/Y axis positioning accuracy: ±0.05 mm/m
• X/Y axis repeat positioning accuracy: ±0.03 mm
• Max acceleration: 1.0 G
• Max moving speed: 120 m/min
• Dimensions (approx.): 15500×6000×2550 mm (CPL3015B) / 16000×4000×2100 mm (CPLS6015B)
