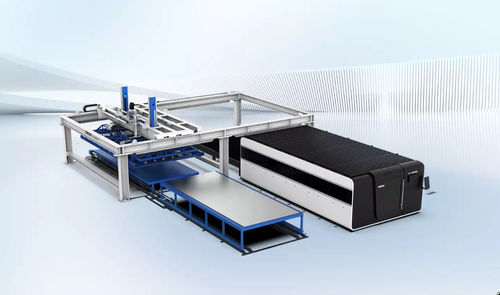

Fiber laser cutting machine GAS

for metalsheet metalsheet

Overview
GAS SERIES fiber laser cutter engineered for heavy-duty industrial sheet processing. Offers a super-large format (up to 6000×2500 mm), high load-bearing capacity and an automated workflow combining vacuum suction loading, laser cutting and toothed unloading. Modular gantry frame enables flexible configurations (one-to-two or one-to-N) and built-in intelligent detection ensures scratch-free handling of plates.

Key features

• Super large format with higher load-bearing capacity: processing area up to 6000×2500 mm, load-bearing up to 3T.
• High automation: vacuum-suction automatic loading, laser cutting, toothed unloading for stable, continuous operation.
• Modular gantry frame design: modular sections for fast assembly and flexible 1-to-2 or 1-to-N layouts.
• Intelligent detection and material protection: single-board loading with sensors to prevent scratches during loading/unloading.

Applications

• Automotive manufacturing
• Office furniture production
• Electrical and electronics industry
• Chassis and cabinet fabrication
• Elevator manufacturing
• Kitchenware production
• Decorative curtain walls
• General machinery manufacturing
• Mold and tooling industry
• Rail transportation components
• Medical equipment components

Technical parameters
Maximum loading plate size: 6000×2500 mm
Minimum loading plate size: 2000×1000 mm
Maximum loading/unloading plate thickness: 14 mm
Minimum loading/unloading plate thickness: 1 mm
Maximum loading/unloading plate weight: 2000 kg
Exchange trolley single-layer loading weight: 5 T
Exchange trolley single-layer loading height: 50 mm
Manipulator translation speed: 10–25 m/min
Manipulator lifting speed: 5–12 m/min
Electric trolley exchange speed: 12 m/min
Working cycle time: 280 s
Equipment power: 43 kW
Total system weight: 17000 kg
Equipment air inlet pipe: 16 mm
Equipment air source: 0.6–0.7 MPa
Power requirements: 380 V / 50 Hz

Technical specifications

• Maximum loading plate size: 6000×2500 mm
• Minimum loading plate size: 2000×1000 mm
• Maximum plate thickness (loading/unloading): 14 mm
• Minimum plate thickness (loading/unloading): 1 mm
• Maximum plate weight (loading/unloading): 2000 kg
• Exchange trolley single-layer loading weight: 5 T
• Exchange trolley single-layer loading height: 50 mm
• Manipulator translation speed: 10–25 m/min
• Manipulator lifting speed: 5–12 m/min
• Electric trolley exchange speed: 12 m/min
• Working cycle time: 280 s
• Equipment power: 43 kW
• Total system weight: 17000 kg
• Equipment air inlet pipe: 16 mm
• Equipment air source: 0.6–0.7 MPa
• Power requirements: 380 V / 50 Hz
