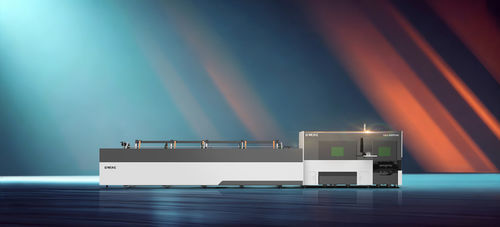

Laser cutting machine GKS6009 TAG

for metaltubefor welding

Overview
The GKS6009 TAG Series automatic bevel tube laser cutting machine features a movable gantry combined with zone cutting technology to deliver near-zero remnant cutting and improved material utilization. An integrated modular intelligent automatic loading system supports continuous tube feeding and automated cycle processing to reduce labor and increase throughput. The machine performs ±45° automatic bevel cutting using a zero-swing bevel mechanism to minimize secondary edge preparation and simplify welding operations. A pull-feed design ensures stable and consistent tube transport across various profiles.

Key Features

• Movable gantry and zone cutting enable 2-chuck near-zero remnant cutting
• Modular intelligent automatic loading system for continuous feeding and automated cycles
• ±45° automatic bevel cutting with zero-swing bevel mechanism
• Pull-feed design for stable and consistent tube feeding

Applications

• Office furniture manufacturing
• Medical device components
• Fitness equipment frames
• Hardware and sanitary ware
• Guardrails and safety barriers
• Piping and pipeline components

Technical Specifications

• Model: GKS6009 TAG Series
• Laser Power: 1500 W / 3000 W
• Automatic loading range: Round tubes Φ10–Φ90 mm; Square tubes □10×10–□90×90 mm
• Clamping range: Round tubes Φ20–Φ90 mm; Square tubes □20×20–□90×90 mm
• Maximum rotation speed: 150 r/min
• Effective cutting length: 6500 mm
• Single pipe load capacity: 80 kg
• Chuck structure: 90 pneumatic chuck
