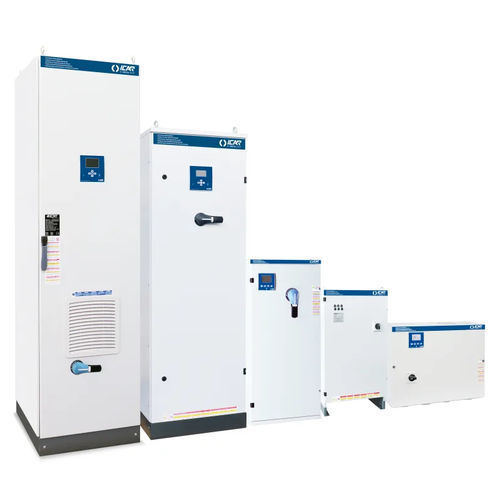

PFC system HP10-60Hz-400V

Overview
Modular power factor correction solution based on metallized polypropylene capacitors designed for low-voltage industrial systems. Suitable for installations operating at 400 V and 60 Hz where compact EUROrack formats are required.

Technical specifications
Nominal system voltage (Ue): 400 V
Capacitor nominal voltage (Un): 400 V
Maximum operating voltage (Umax): 440 V
Rated frequency: 60 Hz
THDIR%: ≤12%

Available configurations - EUROrack
Part number | Name | Reactive power Ue=400V (kVAr) | Reactive power Ue=480V (kVAr) | IP degree
IY0AFF225060359 | EUROrack | 25 | 25 | IP00
IY0AFF250060359 | EUROrack | 50 | 50 | IP00
IY0AFF275060359 | EUROrack | 75 | 75 | IP00
IY0AFF310060359 | EUROrack | 100 | 100 | IP00

Applications

• Power factor correction in industrial and commercial low-voltage networks
• Compensation banks for motors, boards and distribution panels
• Improvement of network quality and harmonic management

Features / technical details

• Metallized polypropylene dielectric with high gradient design
• Available reactive powers at 400 V: 25, 50, 75, 100 kVAr
• IP degree for listed EUROrack variants: IP00
• Nominal and maximum voltages: Un 400 V, Umax 440 V
• Rated frequency: 60 Hz; THDIR% ≤12%
