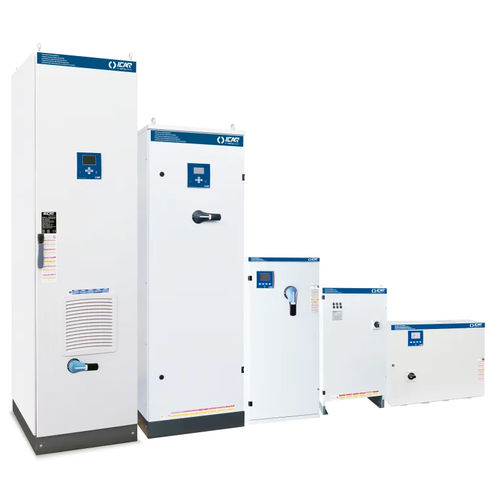

PFC system FH20-60Hz-480V

Product overview
Power factor correction solutions using high-gradient metallized polypropylene capacitors designed for 480 V, 60 Hz industrial networks. Improves energy efficiency, reduces voltage drops and current harmonics, and helps avoid billing penalties.

Technical specifications
Nominal voltage Ue: 480 V
Capacitor rated voltage Un: 575 V
Maximum operating voltage Umax: 632 V
Frequency: 60 Hz
THDIR: 100%
I250Hz: ≤25%
THDVR: ≤6%
Blocking frequency fD: 216 Hz

EUROrack - Available variants
Code: IY7TGG225060360 | Name: EUROrack | Reactive power (Ue=400V): 25 kVAr | IP class: IP00 | Listing card: available (PDF)
Code: IY7TGG250060360 | Name: EUROrack | Reactive power (Ue=400V): 50 kVAr | IP class: IP00 | Listing card: available (PDF)

Features / technical highlights

• Designed for 480 V, 60 Hz industrial installations
• High-gradient metallized polypropylene capacitors for stable aging and low losses
• THDIR 100% for compatibility with harmonic-rich environments
• I250Hz ≤25% and THDVR ≤6% to limit resonance and voltage distortion
• Modular EUROrack variants for easy integration into compensation panels
• IP00 protection class — technical datasheets and listing card available
