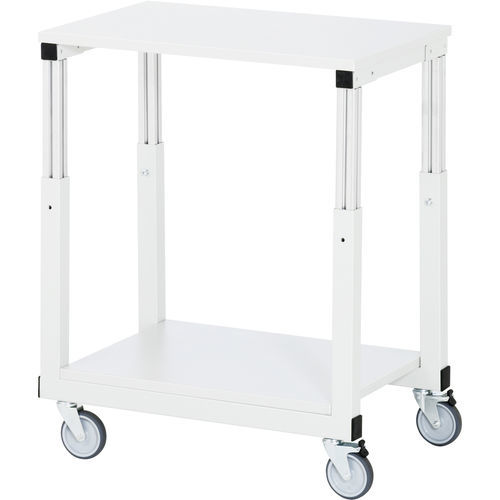

Transport cart E-TW-0700-500M.12
handlingwork stationtransfer

Transport cart - E-TW-0700-500M.12 - RAU - handling / work station / transfer
Transport cart - E-TW-0700-500M.12 - RAU - handling / work station / transfer
Transport cart - E-TW-0700-500M.12 - RAU - handling / work station / transfer - image - 2
Transport cart - E-TW-0700-500M.12 - RAU - handling / work station / transfer - image - 3
Add to favorites
Compare this product

Characteristics

Type
transport, transfer, handling, workshop, work station
Material
steel
Structure
shelf
Other characteristics
with swivel casters, with brake
Carrying capacity

450 kg
(992 lb)

Carry area

3,500 cm²
(543 in²)

Description

Short description
  • Worktop with melamine resin coating, thickness 22 mm.
  • Both faces with light-grey melamine direct coating according to DIN68765. Splashproof and stain-resistant.
  • Surface properties per EN14322/EN14323: abrasion resistance Class 3A, scratch resistance N>1.5, stain resistance ≥3 (e.g. acetone, alcohol, organic solvents, petrol), crack resistance ≥3, cigarette burn behavior Class 3, steam resistance Class 4.
  • Certificate of harmlessness regarding migration behavior, making it suitable for use in food-related areas.
  • Covering normally flammable (B2) according to DIN4102. Panel core: chipboard to EN309/EN312 (emission class E1). All-round light-grey antistatic ABS edging.


System frame / Dimensions
  • System underframe W700 × D500 × H650–1000 mm.
  • 4-leg frame with two pairs of profile steel tube feet (45×45×3 mm) including central depth bracing.
  • Frame feet fitted with 4 swivel castors, 2 with brakes (wheel Ø100 mm, overall height 125 mm, tread thermoplastic rubber (grey, non-marking, 85° Shore), wheel body polypropylene).
  • Frame feet with integrated height adjustment using aluminum profile (40×40 mm), allowing stepless working-height adjustment via the profile slot.
  • Crossmembers of profile steel tube (35×35×2 mm) under the worktop (front, rear) and depth bracing of angle iron (40×35×2 mm) with mounting adapters (left, right).


Equipment / Shelf
  • Shelf with melamine resin coating, W608 × D470 × T22 mm.
  • Both faces of the shelf also with light-grey melamine direct coating (properties as the worktop).


Notes
  • Panel core: chipboard, emission class E1.
  • Covering: normally flammable (B2) according to DIN4102.
  • Product variants / configurable options: selectable widths (e.g. 700 mm, optional 1000 mm), depth options, different top types (melamine top, HPL top, EGB-melamine top, EGB-HPL top) and frame colours (various RAL colours).


Technical specifications
  • Width: 700 mm
  • Depth: 500 mm
  • Height min: 650 mm
  • Height max: 1000 mm
  • Top type: melamine-coated worktop
  • Top thickness: 22 mm
  • Load capacity mobile: 450 kg
  • Load capacity stationary: 450 kg
  • Frame: 4-leg profile steel tube (45×45×3 mm) with depth bracing
  • Castors: swivel Ø100 mm, 2× with brake, tread thermoplastic rubber
