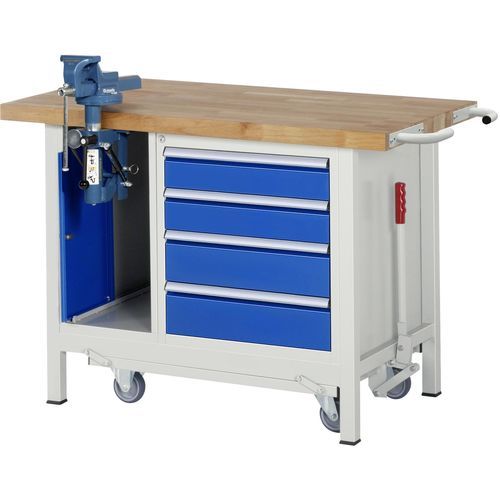

Beech workbench 8185

for workshops4-drawermobile

Description

• Beech solid worktop, 40 mm thick. Beech lamellae finger-jointed (keilzinken). Front edge radius, other edges chamfered. Surface protection with eco-friendly lacquered oil. Classic solid worktop: pressure-resistant, durable, wear-resistant and reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System base: W1245 x D650 x H840 mm.
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45 x 45 x 2 mm) including upper and lower depth braces. Frame feet with end caps including anti-slip studs for safe standing.
• Under-mounted mobile chassis with eccentric lever (right). Operation of eccentric lever permitted up to max. 300 kg load. Chassis retractable and extendable. Chassis with 2 rigid and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Rigid castors mounted left, swivel castors right.
• Sliding handles (supplied loose).

Equipment / further features

• 1 underframe container left, W330 x D650 x H620 mm, with 1 sliding door; behind it a vice with flip-lift.
• 1 underframe container right, W580 x D650 x H620 mm, with 4 drawers (2 x H120, 2 x H150 mm). Drawer pans closed, partial pull-out (90%) with self-run-in and anti-run-back, load capacity 100 kg per drawer.
• Continuous grip rail ErgoScript®: sheet steel base with aluminium-coloured overlay and integrated transparent cover (including labelling strip).
• Central locking: pin-cylinder lock with 2 keys.
• Vice: drop-forged, hardened, adjustable guides, anvil 75 x 75 mm, jaw width 120 mm, clamping depth 82.5 mm, clamping span 146 mm, overall length 365 mm, base diameter 150 mm. MDS (quick removal of spindle key) enables use of ½" square tools.
• Flip-lift: vice can be folded quickly under the workbench; integrated height adjustment and rotation of the vice.

Technical data
Pull-out type: Partial pull-out 90%
Width: 1250 mm
Mobile surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Number of drawers: 4
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis

Characteristics / technical specifications

• Model: Model 8185
• Worktop material: Beech solid (lamellae, finger-joint glued)
• Top thickness: 40 mm
• Top dimensions (example): Width 1250 mm, Depth 700 mm
• Total height: 880 mm
• System base (dimensions): W1245 x D650 x H840 mm
• Frame: 4-leg welded frame from profile steel tube 45 x 45 x 2 mm including upper and lower depth braces
• Mobility / chassis: Lowerable chassis, eccentric lever right (operation up to max. 300 kg load), 2 rigid + 2 swivel castors, wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber
• Surface load (stationary): 1250 kg
• Surface load (mobile): 450 kg
• Drawers: 4 drawers (internal drawer dimensions L: W490 x D560 mm), partial pull-out 90% with self-run-in and anti-run-back, drawer capacity 100 kg
• Accessories & options: various top materials (beech solid, high-pressure laminate, melamine, stainless steel, linoleum, Eterlux etc.), RAL color options for frame and fittings, express production available (surcharge)
