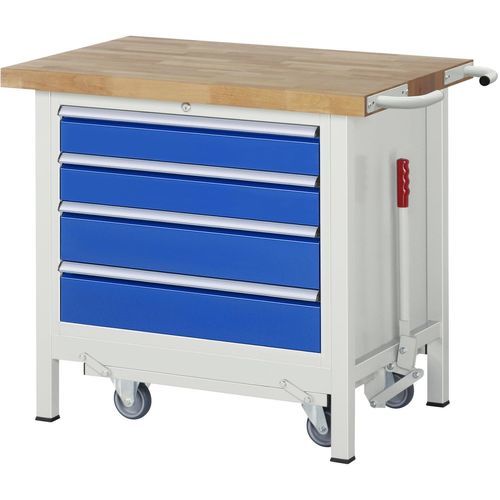

Beech workbench 8262

for workshopswith drawer4-drawer

Short description

• Beech solid worktop, 40 mm thick; finger-jointed beech lamellas. Front edge with radius, other edges chamfered. Surface protected with eco-friendly linseed oil finish.
• System underframe: W995 x D650 x H840 mm. Lowerable chassis with eccentric lever (right) — operation of the eccentric lever allowed up to max. load 300 kg. Chassis with 2 fixed and 2 swivel castors (wheel Ø 100 mm, overall height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Fixed castors left, swivel castors right. Push handles supplied loose.

Equipment (excerpt)

• 1 underframe container, W770 x D650 x H620 mm, with configuration: 4 x Drawer size XL (2 x H120 mm, 2 x H150 mm).
• Drawer size XL (internal W680 x D560 mm, load capacity 75 kg). Roll-mounted partial extension runners (90% extension) with self-engage, anti-return lock and individual pull-out lock. Drawer pan fully closed to accept drawer divider sets optimally.
• Continuous handle rail ErgoScript®: steel base with aluminium-coloured overlay and integrated transparent cover (incl. labelling strip).
• Central lock (pin cylinder lock with 2 keys).

Important notes

• Underbuilt chassis can be raised and lowered; maximum permissible load when operating the eccentric lever: 300 kg.
• Worktop surface protection by linseed oil; raw material PEFC-certified, production from tree to worktop.

Technical representation (table)
Type of extension: Partial extension 90%
Width: 1000 mm
Mobile distributed load: 450 kg
Static distributed load: 1250 kg
Height: 880 mm
Number of drawers: 4
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis

Technical characteristics

• Top material: Beech solid, finger-joint glued
• Top thickness: 40 mm
• Total width (configurable): 1000 mm (other variants 1250 / 1500 / 2000 mm selectable)
• Total depth: 700 mm
• Total height: 880 mm
• Underframe: 4-leg welded frame from profile steel tube 45x45x2 mm
• Chassis: Lowerable, eccentric lever (right), 2 fixed + 2 swivel castors (Ø 100 mm), tread thermoplastic rubber
• Drawers: 4x Drawer size XL, internal W680 x D560 mm, load capacity 75 kg, partial extension 90% with self-engage and anti-return lock
• Handle rail: ErgoScript® with transparent cover for labelling strip
• Locking: Central lock (pin cylinder lock, 2 keys)
• Static distributed load: 1250 kg; mobile: 450 kg
• Delivery time (indicated): 5 working days
