Beech workbench 8271
mobile5-drawerheight-adjustable

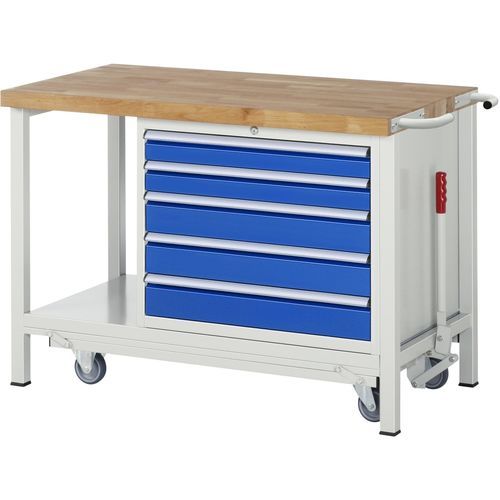

Beech workbench - 8271 - RAU - mobile / 5-drawer / height-adjustable
Beech workbench - 8271 - RAU - mobile / 5-drawer / height-adjustable
Beech workbench - 8271 - RAU - mobile / 5-drawer / height-adjustable - image - 2
Beech workbench - 8271 - RAU - mobile / 5-drawer / height-adjustable - image - 3
Beech workbench - 8271 - RAU - mobile / 5-drawer / height-adjustable - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Other characteristics
mobile, 5-drawer, height-adjustable, manual
Length

1,250 mm
(49 in)

Width

700 mm
(28 in)

Height

880 mm
(35 in)

Load

Max.: 1,250 kg
(2,755.8 lb)

Min.: 450 kg
(992.1 lb)

Description

Overview
  • Solid beech worktop, thickness 40 mm.
  • Beech lamellas finger-joint glued. Front edge rounded, other edges chamfered. Surface protected with lacquered linseed oil. Classic worktop: load-bearing, pressure-resistant, durable and wear-resistant. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
  • System underframe, width 1245 x depth 650 x height 840 mm.
  • Undermounted chassis with eccentric lever (right). Operation of the eccentric lever possible only up to a maximum load of 300 kg. Chassis retractable and extendable. Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Fixed castors left, swivel castors right (plate-mounted).
  • Lower shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
  • Sliding handles supplied loose.


Features
  • 1 underframe container on the right, W770 x D650 x H620 mm, with the following division: 5 x drawer size XL (2 x H90, 3 x H120 mm).
  • Drawer size XL: internal W680 x D560 mm, load capacity 75 kg. Ball-bearing partial-extension slides (90% extension) with self-closing and anti-rollback, and single-drawer locking.
  • Usable drawer height corresponds to front height minus 15 mm. Drawer pan fully enclosed to accept drawer divider sets optimally.
  • Continuous handle strip ErgoScript®: steel base with aluminium-coloured overlay and integrated clear cover (including labeling strip).
  • Central locking (pin tumbler cylinder lock with 2 keys).


Additional information
  • Express production optionally available (order received by 11:00 → production and dispatch next day). Additional charge shown separately.
  • Delivery time (standard): 5 working days.
  • Delivery: assembled (depending on configuration).


Technical specifications
  • Commercial name: Model 8271
  • EAN: 4040376221285
  • Article number: 05-8271A6-127B4F.11
  • Extension type: Partial-extension 90%
  • Width: 1250 mm
  • Depth: 700 mm
  • Height: 880 mm
  • Top type: Solid beech worktop
  • Top thickness: 40 mm
  • Number of drawers: 5
  • Mobile surface load: 450 kg
  • Stationary surface load: 1250 kg
  • Mobility: Lowerable chassis (retractable/extendable with eccentric lever)
  • Worktop surface: protected with lacquered linseed oil
  • Max. load for operating the eccentric lever: 300 kg
