Beech workbench 8157
for workshops3-drawermobile

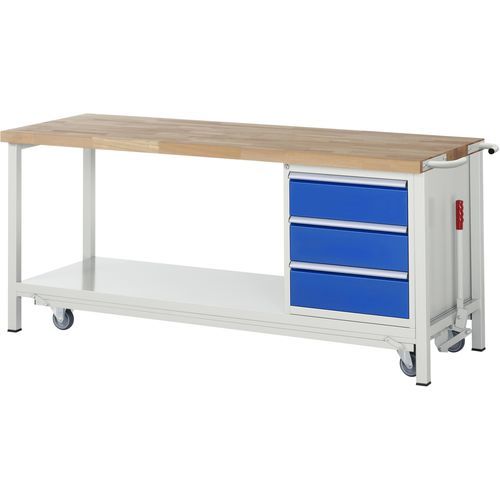

Beech workbench - 8157 - RAU - for workshops / 3-drawer / mobile
Beech workbench - 8157 - RAU - for workshops / 3-drawer / mobile
Beech workbench - 8157 - RAU - for workshops / 3-drawer / mobile - image - 2
Beech workbench - 8157 - RAU - for workshops / 3-drawer / mobile - image - 3
Beech workbench - 8157 - RAU - for workshops / 3-drawer / mobile - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
3-drawer, mobile, height-adjustable
Length

2,000 mm
(79 in)

Width

700 mm
(28 in)

Height

880 mm
(35 in)

Load

Min.: 450 kg
(992.1 lb)

Max.: 1,250 kg
(2,755.8 lb)

Description

Short description
  • Beech solid worktop, thickness 40 mm.
  • Beech lamella with finger-joint gluing. Front edge radiused, other edges chamfered. Surface protection with eco-friendly lacquer oil. Classic worktop: load-bearing, compression-resistant, durable, natural, wear-resistant, reusable. 100% in-house production with PEFC-certified raw material from sustainable regional forestry.
  • System underframe: W1995 x D650 x H840 mm.
  • Under-mounted mobile chassis with eccentric lever (right). Operation of the eccentric lever only possible up to a maximum load of 300 kg. Chassis extendable and retractable. Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Fixed castors left, swivel castors right. Lower shelf depth 650 mm, flush at rear with system underframe, compartment height 620 mm.
  • 4-leg welded frame with two pairs of frame feet made from profile steel tube (45 x 45 x 2 mm) including depth bracing (top and bottom). Frame feet bottom with end element including anti-slip nubs for secure standing.
  • Push handles (supplied loose).


Equipment
  • 1 underbody container on the right, W580 x D650 x H620 mm, division: 3 x drawer size L (3 x H180 mm).
  • Drawer size L: internal W490 x D560 mm, load capacity 100 kg. Roller-mounted partial extension slides (90%) with self-closing and backstop. Usable drawer height corresponds to front height minus 15 mm. Drawer tub completely closed to optimally accept drawer divider sets.
  • Continuous grip rail ErgoScript®: steel sheet base with aluminium-coloured overlay and integrated clear cover (including labelling strip).
  • Central locking (pin cylinder lock with 2 keys).


Technical specifications
  • Extension type: partial extension 90%
  • Width: 2000 mm
  • Mobile load capacity: 450 kg
  • Stationary load capacity: 1250 kg
  • Height: 880 mm
  • Number of drawers: 3
  • Depth: 700 mm
  • Top type: beech solid worktop
  • Top thickness: 40 mm
  • Mobility: lowerable chassis
