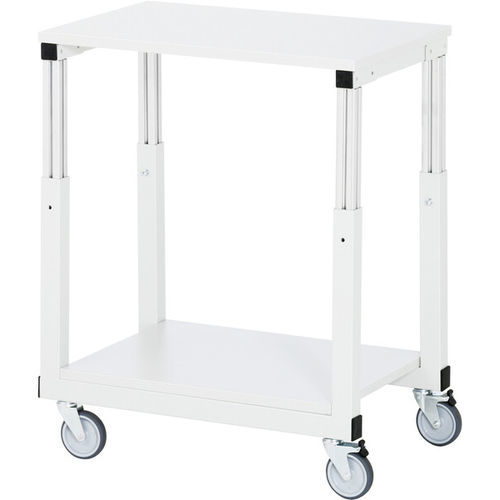

Work station cart E-TW-0700-500HE.12

steelshelfwith swivel casters

Description

• EGB worktop with conductive HPL surface (HPL) thickness 30 mm. Surface with 0.8 mm conductive light-grey HPL layer according to EN 438. Splash-proof and stain-resistant. High abrasion, scratch and impact resistance. Resistant to weak acids, alkalis and common cleaning agents. Cover classified normally flammable (B2) per DIN 4102. Core made of volume-conductive particleboard according to EN 309 / EN 312 (emission class E1). Underside with conductive counterbalancing layer. All-round light-grey antistatic ABS edge.
• Top surface is volume-conductive and suitable for ESD-protected areas.

Frame and chassis

• 4-foot frame with two pairs of frame feet made from profile steel tube (45 x 45 x 3 mm) including central depth bracing.
• Frame feet fitted with 4 swivel castors, 2 with brakes (wheel Ø 100 mm, overall height 125 mm). Tread made of electrically conductive thermoplastic rubber (grey, non-marking, 85° Shore), wheel body made of polypropylene.
• Upper frame feet with integrated height adjustment using aluminium profile (40 x 40 mm) for stepless working height adjustment. Transverse braces from profile steel tube (35 x 35 x 2 mm) under the worktop (front, rear) and depth braces from angle iron (40 x 35 x 2 mm) with mounting adapters (left, right).

Additional equipment

• EGB shelf with conductive HPL covering, B608 x T470 x S30 mm.

Table - Technical data
Width: 700 mm
Depth: 500 mm
Height from: 650 mm
Height to: 1000 mm
Load capacity (mobile): 450 kg
Load capacity (stationary): 450 kg
Top type: EGB HPL worktop
Top thickness: 30 mm

Technical specifications

• Width: 700 mm
• Depth: 500 mm
• Height adjustment: stepless via aluminium profile, adjustable approx. 650–1000 mm
• Top construction: EGB HPL with 0.8 mm conductive wearing layer, core volume-conductive particleboard (EN 309 / EN 312, E1)
• Top thickness: 30 mm
• Load capacity (mobile / stationary): 450 kg
• Frame: profile steel tube with transverse and depth bracing
• Castors: Ø 100 mm, thermoplastic rubber, electrically conductive
