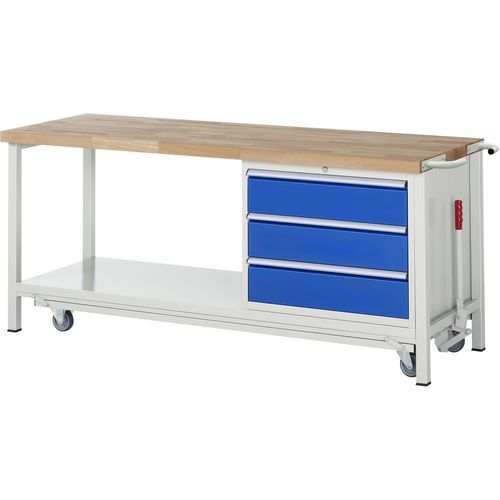

Beech workbench 8257
for workshopswith drawer3-drawer

Beech workbench - 8257 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 8257 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 8257 - RAU - for workshops / with drawer / 3-drawer - image - 2
Beech workbench - 8257 - RAU - for workshops / with drawer / 3-drawer - image - 3
Beech workbench - 8257 - RAU - for workshops / with drawer / 3-drawer - image - 4
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, 3-drawer, mobile, fully-welded, with cabinet, manual
Length

2,000 mm
(79 in)

Width

700 mm
(28 in)

Height

880 mm
(35 in)

Load

Min.: 450 kg
(992.1 lb)

Max.: 1,250 kg
(2,755.8 lb)

Description

Description
  • Beech solid worktop, thickness 40 mm.
  • Beech lamellas finger-joint glued. Front edge radiused, other edges chamfered. Surface protected with eco-friendly lacquered linseed oil. Classic worktop characteristics: load-bearing, pressure-resistant, durable, natural, wear-resistant, reusable. 100% in-house production from PEFC-certified raw material sourced from sustainable regional forestry.
  • System underframe 1995 x 650 x 840 mm.
  • 4-leg welded frame with two pairs of feet made from profile steel tube (45x45x2 mm) including depth braces (top and bottom). Frame feet fitted with end caps including anti-slip studs for secure standing.
  • Under-mounted mobile chassis with eccentric lever (right). Operation of the eccentric lever only permitted up to a maximum load of 300 kg. Chassis can be extended and retracted using the lever. Chassis fitted with 2 fixed and 2 swivel castors (wheel Ø100 mm, overall height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Fixed castors mounted on the left, swivel castors on the right (plate mounting).
  • Lower shelf (depth 650 mm, rear flush with subframe, compartment height 620 mm).
  • Loose sliding handles supplied.


Equipment
  • 1 underframe container on the right, 770 x 650 x 620 mm, with the following layout:
  • 3 x XL drawer size (internal 680 x 560 mm, load capacity 75 kg each).
  • Roll-mounted partial-extension rails (90% extension) with self-entry and rollback protection, plus individual pull-out locking.
  • The usable drawer height equals the front height minus 15 mm. Drawer box fully enclosed to optimally receive drawer divider sets.
  • Continuous ErgoScript® handle rail: steel sheet base with aluminium-coloured overlay and integrated clear cover (including label strip).
  • Central lock (pin-cylinder lock with 2 keys).


Technical data
  • Drawer extension type: Partial extension 90%
  • Width: 2000 mm
  • Mobile surface load: 450 kg
  • Stationary surface load: 1250 kg
  • Height: 880 mm
  • Number of drawers: 3
  • Depth: 700 mm
  • Top type: Beech solid worktop
  • Top thickness: 40 mm
  • Mobility: Lowerable chassis
  • Model designation: Model 8257
  • EAN: 4040376161338
  • Article number: 05-8257A6-207B4F.11
