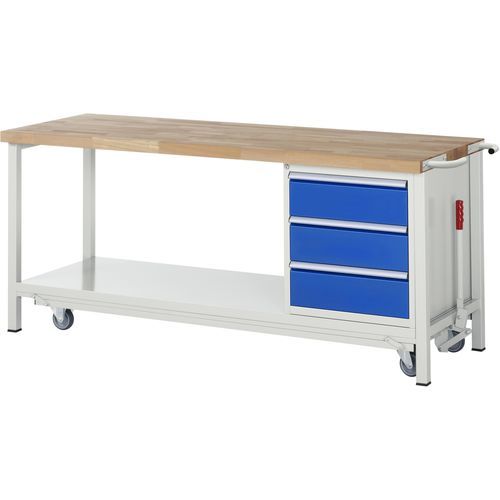

Beech workbench 8157
for workshopsmobile3-drawer

Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer
Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer
Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer - image - 2
Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer - image - 3
Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer - image - 4
Beech workbench - 8157 - RAU - for workshops / mobile / 3-drawer - image - 5
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
mobile, 3-drawer, with drawer, with cabinet
Length

1,995 mm
(79 in)

Width

2,000 mm
(79 in)

Height

880 mm
(35 in)

Load

450 kg, 1,250 kg
(992.1 lb, 2,755.8 lb)

Description

Description
  • Beech solid worktop, thickness 40 mm.
  • Finger-jointed beech lamellas, front edge rounded, other edges chamfered. Surface protected with eco-friendly lacquer oil. PEFC-certified raw material from sustainable regional forestry.
  • System underframe dimensions: B1995 x T650 x H840 mm.
  • 4-leg welded frame with two pairs of profile steel tube feet (45 x 45 x 2 mm) including depth braces. Frame feet fitted with end caps with anti-slip studs.
  • Under-mounted lowering chassis with eccentric lever (right). Operation of the eccentric lever only up to a max loading of 300 kg. Chassis can be extended and retracted with the lever. Chassis with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber 85° Shore, wheel body polypropylene). Fixed castors mounted on left side, swivel castors on right side (plate mounting).
  • Bottom shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
  • Loose sliding handles supplied.


Equipment
  • 1 underframe container on right, B580 x T650 x H620 mm, with the following layout:
  • 3 x drawer size L 3xH180 mm.
  • Drawer size L: internal B490 x T560 mm, load capacity 100 kg. Telescopic partial extension slides (90% travel) with self-return and anti-drop. Usable drawer height equals front height minus 15 mm. Drawer tub fully closed to accept drawer divider sets.
  • Continuous handle strip ErgoScript®: steel base with aluminium-coloured overlay and integrated clear cover (including label strip).
  • Central lock (pin cylinder lock with 2 keys).


Technical specifications
  • Pull-out type: partial extension 90%
  • Width: 2000 mm
  • Mobile surface load: 450 kg
  • Stationary surface load: 1250 kg
  • Height: 880 mm
  • Number of drawers: 3
  • Depth: 700 mm
  • Top type: beech solid worktop
  • Top thickness: 40 mm
  • Mobility: lowering chassis
