Beech workbench 8357
with drawer3-drawermobile

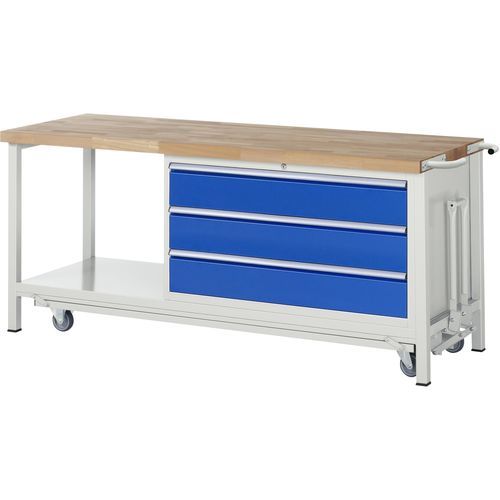

Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 2
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 3
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 4
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 5
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 6
Beech workbench - 8357 - RAU - with drawer / 3-drawer / mobile - image - 7
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Other characteristics
with drawer, 3-drawer, mobile
Length

2,000 mm
(79 in)

Width

700 mm
(28 in)

Height

880 mm
(35 in)

Load

Max.: 1,250 kg
(2,755.8 lb)

Min.: 450 kg
(992.1 lb)

Description

Product description
  • Beech solid worktop, 40 mm thick. Finger-joint laminated beech slats. Front edge radiused, other edges chamfered. Surface protected with eco-friendly lacquer oil. 100% in-house production with PEFC-certified regional wood.
  • System underframe: W1995 x D650 x H840 mm.
  • 4-leg welded frame with two foot pairs of profile steel tube (45 x 45 x 2 mm) including depth braces. Frame feet with end caps with anti-slip studs for secure standing.
  • Under-mounted lowering chassis with eccentric lever (right). Operation of the eccentric lever permitted up to a maximum load of 300 kg. Chassis can be engaged and disengaged with the eccentric lever.
  • Castors: 2 fixed and 2 swivel; wheel diameter 100 mm, overall height 125 mm; tread thermoplastic rubber (non-marking, 85° Shore); wheel body polypropylene. Fixed castors on the left, swivel castors on the right (plate mounting).
  • Bottom shelf (depth 650 mm, rear flush with system underframe), compartment height 620 mm.
  • Slide handles supplied loose.


Equipment
  • 1 underframe container (right), dimensions W1145 x D650 x H620 mm.
  • Configuration: 3 x XXL drawers (3 x H180 mm).
  • Drawers: internal dimensions W1055 x D560 mm, load capacity 50 kg. Ball-bearing partial-extension slides (90% extension) with self-return, anti-return and individual-locking function.
  • Drawer tub fully closed to accept drawer divider sets; usable drawer height = front height minus 15 mm.
  • Continuous grip profile ErgoScript®: steel base with aluminium-coloured overlay and integrated transparent cover (incl. label strip).
  • Central locking: pin cylinder lock with 2 keys.


Notes
  • Operating and assembly instructions available as manual.
  • Express production optional (order received by 11:00 → production and dispatch next day; surcharge applies).


Technical specifications
  • Extension type: partial extension 90%
  • Width: 2000 mm
  • Depth: 700 mm
  • Height: 880 mm
  • Top type: Beech solid worktop
  • Top thickness: 40 mm
  • Number of drawers: 3
  • Load capacity mobile: 450 kg
  • Load capacity stationary: 1250 kg
  • Mobility: lowering chassis
  • Underframe (total): W1995 x D650 x H840 mm
