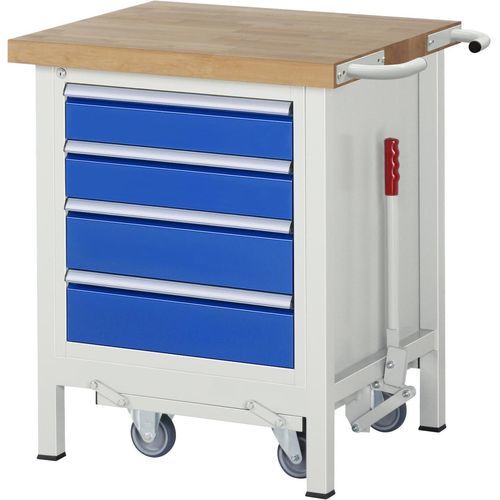

Beech workbench 8162

4-drawermobile

Description

• Beech solid worktop, thickness 40 mm.
• Beech lamellas with finger-joint gluing. Front edge with radius, other edges chamfered. Surface protection by eco-friendly varnish-oil. Classic solid wood worktop: load-bearing, pressure-resistant, long service life, wear-resistant, reusable. 100% in-house production using PEFC-certified raw material from sustainable regional forestry.
• System underframe, B670 x D650 x H840 mm.
• 4-leg welded frame with two pairs of frame feet made from profile steel tube (45 x 45 x 2 mm) including depth bracing (top and bottom). Frame feet with end caps including anti-slip studs for secure stand.
• Under-mounted mobile chassis with eccentric lever (right). Operation of the eccentric lever only possible up to a maximum load of 300 kg. The chassis can be engaged and retracted with the eccentric lever. Chassis fitted with 2 rigid and 2 swivel castors (wheel diameter 100 mm, total height 125 mm, tread made of thermoplastic rubber, wheel body of polypropylene). Rigid castors left, swivel castors right (wheel plate attachment).
• Sliding handles (supplied loose).

Equipment

• 1 underframe container, B580 x D650 x H620 mm, with the following division: 4 x drawer-size-L: 2 x H120 mm, 2 x H150 mm.
• Drawer-size-L (inside B490 x D560 mm, load capacity 100 kg). Roller-mounted partial extension rails (90% extension) with self-return and anti-rebound. Usable drawer height corresponds to front height minus 15 mm. Drawer pan fully closed for optimal use with drawer partition sets.
• Continuous handle strip ErgoScript®: sheet steel base with aluminium-coloured overlay and integrated transparent cover (including label strip).
• Central locking (pin cylinder lock with 2 keys).

Technical data
Extension type: Partial extension 90%
Width: 750 mm
Load capacity mobile: 450 kg
Load capacity stationary: 1250 kg
Height: 880 mm
Number of drawers: 4
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis (mobile)


Characteristics / Technical specifications

• Product: Lowerable workbench Model 8162
• Worktop material: Beech solid, 40 mm
• Underframe: System underframe with chassis (extendable/retractable, eccentric lever)
• Dimensions (selection): B750 x D700 x H880 mm (product variant width: 750 mm)
• Load capacity: mobile 450 kg / stationary 1250 kg
• Drawers: 4 pieces, drawer-size-L (inside B490 x D560 mm), load capacity 100 kg, partial extension 90%
• Worktop surface treatment: Varnish-oil (eco-friendly)
