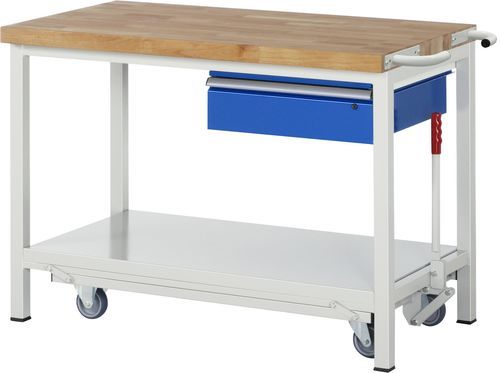

Beech workbench 8001
for workshopswith drawermobile

Beech workbench - 8001 - RAU - for workshops / with drawer / mobile
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile - image - 2
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile - image - 3
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile - image - 4
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile - image - 5
Beech workbench - 8001 - RAU - for workshops / with drawer / mobile - image - 6
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, mobile, with shelves, fully-welded, height-adjustable, manual
Length

700 mm
(28 in)

Width

1,250 mm
(49 in)

Height

880 mm
(35 in)

Load

Max.: 1,250 kg
(2,755.8 lb)

Min.: 450 kg
(992.1 lb)

Description

Short description
  • Adjustable-height workbench Model 8001 with beech solid worktop, thickness 40 mm.
  • Underframe: 1 drawer and steel sheet storage shelf.


Product details
  • Beech solid worktop, thickness 40 mm. Beech lamellas finger-joint glued. Front edge radius, other edges chamfered. Surface protected with eco-friendly lacquered oil. Manufactured in-house using PEFC-certified raw material from sustainable regional forestry.
  • System underframe: W1245 x D650 x H840 mm (system underframe dimensions in product assembly).
  • 4-leg welded frame with two pairs of frame feet made from profile steel tube (45x45x2 mm) including top and bottom depth braces. Frame feet bottom with end caps including anti-slip nibs for secure standing.
  • Under-mounted, lowerable mobile chassis with eccentric lever (right). Eccentric lever operation only up to max load 300 kg. Chassis extendable and retractable. Chassis fitted with 2 rigid and 2 swivel castors (wheel diameter 100 mm, build height 125 mm, tread thermoplastic rubber, non-marking, 85° Shore; wheel body polypropylene). Rigid castors left, swivel castors right (wheel plate mounting).
  • Transverse braces from C-profile (40x40x2 mm) under the top (front, rear) and storage shelf below (depth 650 mm flush with system underframe at rear, compartment height 580 mm).
  • Push handles: supplied loose.


Equipment
  • 1 underframe drawer on the right, W520 x D650 x H175 mm.
  • 1 x drawer size L (internal W490 x D560 mm), drawer load capacity 50 kg, roller-mounted slides, 90% extension (partial extension 90%).
  • Usable drawer height corresponds to front height minus 15 mm; drawer pan fully closed (suitable for drawer organizing sets).
  • Continuous handle strip ErgoScript®: steel base with aluminum-colored overlay and integrated transparent cover (incl. labeling strip).
  • Central lock: pin cylinder lock with 2 keys.


Mobility and load notes
  • Mobility: Lowerable chassis (mobile / lowered adjustable).
  • Floor load (mobile): 450 kg.
  • Floor load (stationary): 1250 kg.


Technical specifications
  • Extension type: 90% partial extension
  • Width: 1250 mm
  • Depth: 700 mm
  • Height: 880 mm
  • Top type: Beech solid worktop
  • Top thickness: 40 mm
  • Number of drawers: 1
  • Floor load (mobile): 450 kg
  • Floor load (stationary): 1250 kg
  • Mobility: Lowerable chassis
  • System underframe (dimensions, materials and construction as described above)
