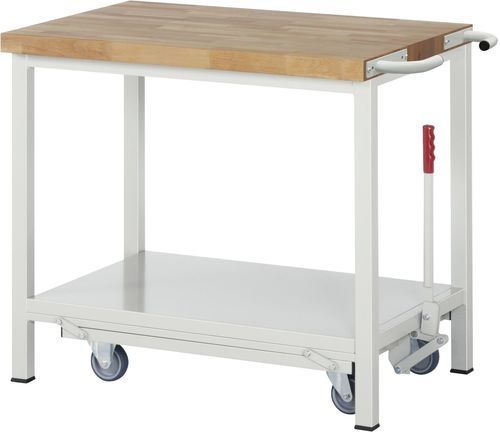

Beech workbench 8000

for workshopsindustrialmobile

Description

• 40 mm beech solid worktop with glued lamellas and rounded front edge; other edges chamfered. Surface protection with environmentally friendly lacquer oil. Produced from PEFC‑certified raw material from sustainable regional forestry.
• Classic industrial worktop: high load resistance, durable and wear‑resistant, 100% produced in‑house.
• System underframe: B995 x D650 x H840 mm. Sliding handles supplied loose.

Construction and chassis

• 4‑leg welded frame made from 45×45×2 mm profiled steel tube with top and bottom depth braces.
• Frame feet fitted with end elements including anti‑slip studs for secure standing.
• Under‑mounted lowering chassis operated by an eccentric lever on the right. Eccentric lever operation permitted up to a maximum service load of 300 kg. Chassis can be extended and retracted with the lever.
• Chassis equipped with 2 rigid and 2 swivel castors (wheel Ø 100 mm, overall height 125 mm). Tread material: thermoplastic rubber, non‑marking, 85° Shore; wheel body: polypropylene. Rigid castors left, swivel castors right (plate mounting).
• Crossbars in C‑profile (40×40×2 mm) located under the worktop (front, rear) and a lower storage shelf (rear depth 650 mm flush with system underframe, compartment height 580 mm).

Key features

• High static and movable surface loads (see technical data).
• Multiple top options and set configurator for different top materials and thicknesses (e.g. beech solid, high‑pressure laminate, stainless steel covering, linoleum, MDF, multiplex, Trovidur).
• Express production available at extra cost (order received by 11:00 → production and dispatch next day; additional fee applies).

Technical data
Width: 1000 mm
Movable surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Depth: 700 mm
Top: beech solid worktop
Top thickness: 40 mm
Mobility: lowering chassis

Product information

• Model: Model 8000
• EAN: 4040376981769
• System underframe: B995 x D650 x H840 mm
• Frame material: profiled steel tube 45×45×2 mm (4‑leg welded frame)
• Castors: 2 rigid + 2 swivel, Ø 100 mm, overall height 125 mm, tread thermoplastic rubber (non‑marking, 85° Shore)
• Max operable eccentric load for chassis: 300 kg (when using eccentric lever)
• Lower shelf depth: 650 mm (rear flush)
• Compartment height under shelf: 580 mm
• Top surface protection: lacquer oil (environmentally friendly)
