Beech workbench 8183
for workshopswith drawer3-drawer

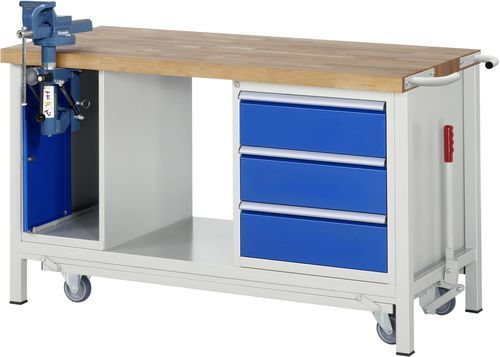

Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 2
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 3
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 4
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 5
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 6
Beech workbench - 8183 - RAU - for workshops / with drawer / 3-drawer - image - 7
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Applications
for workshops
Other characteristics
with drawer, 3-drawer, mobile, height-adjustable
Length

1,500 mm
(59 in)

Width

700 mm
(28 in)

Height

880 mm
(35 in)

Load

Min.: 450 kg
(992.1 lb)

Max.: 1,250 kg
(2,755.8 lb)

Description

Product description
  • Beech solid worktop, thickness 40 mm. Beech lamellae finger-joint bonded. Front edge radius, other edges chamfered. Surface treated with eco-friendly lacquer-oil. Produced 100% in-house from PEFC-certified regional timber.
  • System subframe: W1495 x D650 x H840 mm.
  • 4-leg welded frame with two pairs of profile steel legs (45 x 45 x 2 mm) including top and bottom depth braces. Leg feet fitted with end caps and anti-slip nubs for secure standing.
  • Under-mounted mobile carriage with right-side eccentric lever. Eccentric lever operation allowed up to a maximum load of 300 kg. Carriage can be retracted and extended using the eccentric lever. Carriage fitted with 2 fixed and 2 swivel castors (wheel diameter 100 mm, overall build height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Fixed wheels left, swivel wheels right (plate-mounted).
  • Bottom shelf (depth 650 mm, rear flush with system subframe, compartment height 620 mm).
  • Loose sliding handles supplied.


Equipment
  • 1 left underframe container, W330 x D650 x H620 mm, with 1 sliding door and 1 bench vise (jaw width 120 mm) on folding lift.
  • 1 right underframe container, W580 x D650 x H620 mm, with 3 x drawer size L (3 x H180 mm). Drawer internal size L: W490 x D560 mm, load capacity 100 kg. Ball-bearing partial-extension slides (90% extension) with self-return and anti-rack. Drawer tray fully closed for optimal use with drawer divider sets.
  • Continuous ErgoScript® handle strip: steel backing with aluminium-coloured overlay and integrated transparent cover (includes labeling strip).
  • Central lock (cylinder lock with 2 keys).
  • Bench vise: hardened quality steel. Adjustable guides, quick spindle-key release (MDS). Anvil 75 x 75 mm. Jaw width 120 mm, throat depth 82.5 mm, clamping capacity 146 mm, total length 365 mm, base diameter 150 mm.
  • Folding lift: bench vise folds quickly under the worktop via folding lift. Integrated height adjustment and rotation for ergonomic positioning.


Technical specifications
  • Extension type: partial extension 90%
  • Width: 1500 mm
  • Surface load (mobile): 450 kg
  • Surface load (stationary): 1250 kg
  • Height: 880 mm
  • Number of drawers: 3
  • Depth: 700 mm
  • Top type: beech solid worktop
  • Top thickness: 40 mm
  • Mobility: lowerable mobile carriage
