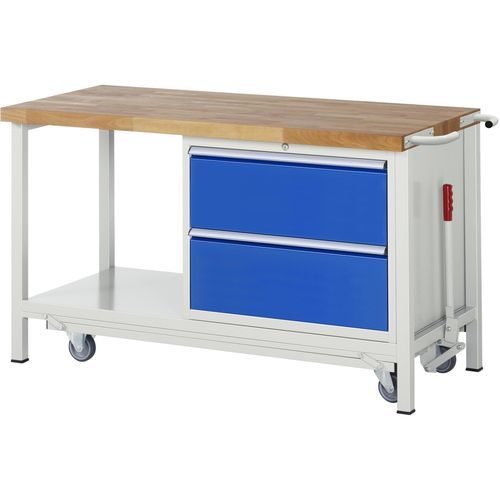

Beech workbench 8255

with drawer2-drawermobile

Description

• Solid beech worktop, 40 mm thick. Beech lamellas finger-jointed. Front edge radius, other edges chamfered. Surface protected with eco-friendly oil. Durable, wear-resistant worktop produced 100% in-house from PEFC-certified regional timber.
• System underframe, W1495 x D650 x H840 mm.
• 4-leg welded frame with two pairs of profile steel tube feet (45 x 45 x 2 mm) including depth bracing (top and bottom). Feet finished with end caps including anti-slip studs for stable positioning.
• Under-mounted mobile chassis with eccentric lever (right). Operation of the eccentric lever permitted up to a maximum load of 300 kg. Chassis can be engaged/disengaged with the lever. Chassis fitted with 2 rigid and 2 swivel wheels (wheel Ø 100 mm, overall height 125 mm, tread made of thermoplastic rubber (non-marking, 85° Shore), wheel body polypropylene). Rigid wheels left, swivel wheels right (plate mounting).
• Bottom storage shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
• Sliding handles supplied loose.

Equipment

• 1 underbody cabinet on the right, W770 x D650 x H620 mm, layout: 2 x XL drawers 2 x H270 mm.
• XL drawer (internal W680 x D560 mm, load capacity 75 kg). Roll-mounted partial-extension runners (90% extension) with self-return and anti-reverse function and individual locking device.
• Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to accept drawer divider sets.
• Continuous handle rail ErgoScript®: steel base with aluminium-coloured overlay and integrated transparent cover (including labeling strip). Central lock (pin cylinder lock with 2 keys).

Technical data
Extension type: 90% partial extension
Width: 1500 mm
Movable surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Number of drawers: 2
Depth: 700 mm
Top type: Solid beech worktop
Top thickness: 40 mm
Mobility: Lowerable/retractable chassis

Identifiers / specifications

• EAN: 4040376996848
• Article number: 05-8255A6-157B4F.11
• Top material: Solid beech, finger-jointed
• Standard delivery: assembled, lead time approx. 5 working days
