Beech workbench 8181
fully-weldedwith cabinetmanual

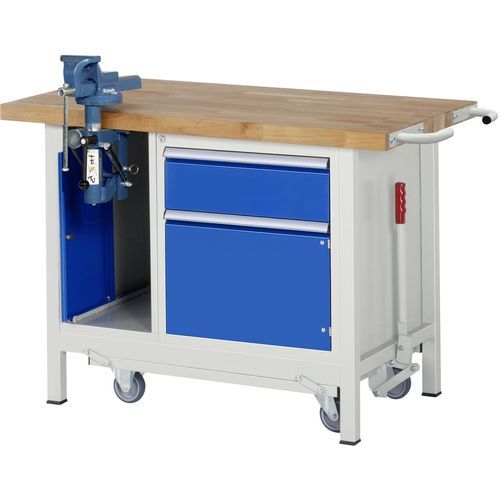

Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual
Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual
Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual - image - 2
Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual - image - 3
Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual - image - 4
Beech workbench - 8181 - RAU - fully-welded / with cabinet / manual - image - 5
Add to favorites
Compare this product

Characteristics

Worktop material
beech
Other characteristics
fully-welded, with cabinet, manual, with drawer, mobile
Length

700 mm
(28 in)

Width

1,250 mm
(49 in)

Height

880 mm
(35 in)

Load

Min.: 450 kg
(992.1 lb)

Max.: 1,250 kg
(2,755.8 lb)

Description

Product description
  • 40 mm beech solid worktop. Beech strips finger-jointed; front edge radius, other edges chamfered.
  • Surface protection with eco-friendly lacquer-oil. Durable, pressure-resistant finish. 100% in-house production using PEFC-certified regional raw material.
  • System base dimensions: W999 x D650 x H840 mm.
  • Four-leg welded frame with two pairs of profile steel tube feet (45 x 45 x 2 mm) including depth braces (top and bottom). Feet fitted with end caps with anti-slip studs.
  • Under-mounted lowering mobile chassis with eccentric lever (right). Eccentric lever operation permitted up to a maximum load of 300 kg. Chassis can be locked/unlocked via eccentric lever.
  • Chassis with 2 fixed and 2 swivel castors: wheel diameter 100 mm, overall height 125 mm, tread thermoplastic rubber (non-marking, 85° Shore), wheel body polypropylene. Fixed castors left, swivel castors right (plate mounting).
  • Slide handles supplied loose.


Equipment / Features
  • 1 underbase container left, W330 x D650 x H620 mm with sliding door and vice mounting (jaw width 120 mm) with folding lift.
  • 1 underbase container right, W580 x D650 x H620 mm with 1 drawer (H180 mm) and 1 hinged door (H360 mm).
  • Drawer: internal W490 x D560 mm, load capacity 100 kg. Part-extension telescopic runners (90% travel) with self-return and anti-return device. Drawer pan fully closed to accept partition sets.
  • Hinged doors with self-closing spring hinges, opening up to 180°.
  • Continuous grip rail ErgoScript®: steel base with alu-colored overlay and integrated transparent cover (including labeling strip).
  • Central locking: pin-cylinder lock with 2 keys.
  • Bench vice: drop-forged, hardened, adjustable guides, MDS spindle mount, large anvil. Jaw width 120 mm, throat depth 82.5 mm, clamping range 146 mm, anvil 75 x 75 mm, total length 365 mm, base diameter 150 mm.
  • Folding lift: vice can be folded under the worktop; integrated height adjustment and swivel function for ergonomic use.


Characteristics / Technical specifications
  • Commercial name (model): Model 8181
  • Extension type: 90% partial extension
  • Width: 1250 mm (configurable variants: 1000 / 1250/1 / 1250/2 / 1500 / 2000)
  • Depth: 700 mm
  • Height: 880 mm
  • Top type: beech solid worktop
  • Top thickness: 40 mm (options/extra charges for other top types and thicknesses available)
  • Number of drawers: 1 (as configured)
  • Static surface load: 1250 kg
  • Mobile surface load: 450 kg
  • Mobility: Lowerable chassis (mobile with 2 fixed and 2 swivel castors)
  • System base dimensions: W999 x D650 x H840 mm
