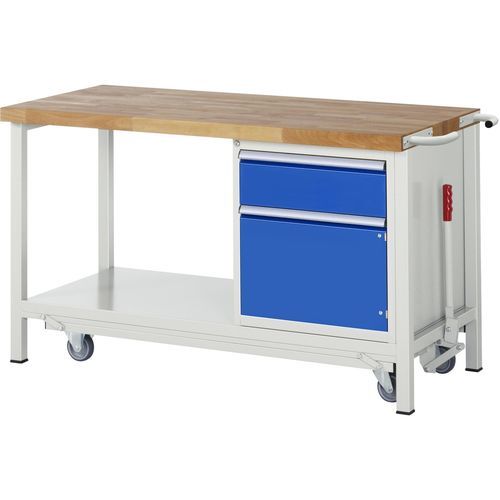

Beech workbench 8152

for workshopswith drawerdoor

Product description

• Beech solid worktop, thickness 40 mm.
• Beech lamellas finger-jointed and glued. Front edge radius, other edges chamfered. Surface protected with eco-friendly lacquered linseed oil. Classic solid wood worktop manufactured from PEFC-certified regional timber.
• System underframe (note in product description): W1495 x D650 x H840 mm.
• Lowerable chassis operated by eccentric lever (right). Operation of the eccentric lever only possible up to a maximum payload of 300 kg. Chassis retractable and extendable. Chassis fitted with 2 fixed and 2 swivel castors (wheel diameter 100 mm, build height 125 mm, tread made of thermoplastic rubber, wheel body polypropylene). Fixed castors on the left, swivel castors on the right. Lower shelf depth 650 mm, compartment height 620 mm.
• Sliding handles (supplied loose).

Equipment

• 1 underframe container on the right, dimensions W580 x D650 x H620 mm with the following layout: 1 x drawer (size L) H180 mm, 1 x wing door (size L) H360 mm.
• Drawer: internal dimension W490 x D560 mm, load capacity 100 kg. Roller-mounted partial-extension rails (90% travel) with self-return and anti-return. Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to accommodate drawer divider sets.
• Wing doors with self-closing spring hinges, opening angle 180°.
• Continuous handle rail ErgoScript®: steel plate base with aluminium-coloured overlay and integrated transparent cover (including label strip).
• Central lock: pin-cylinder lock with 2 keys.

Technical data (table)
Extension type: Partial extension 90%
Width: 1500 mm
Mobile surface load: 450 kg
Stationary surface load: 1250 kg
Height: 880 mm
Number of drawers: 1
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis


Specifications

• Model: 8152 (Lowerable workbench)
• Article number: 05-8152A6-157B4F.11
• EAN: 4040376991706
• Worktop material: Beech solid, beech lamellas, finger-jointed
• Top thickness: 40 mm
• Top edges: Front edge radius-shaped, other edges chamfered
• Surface protection: Lacquered linseed oil (eco-friendly)
• Underframe: System underframe with lowerable chassis (eccentric-actuated)
• Chassis: 2 fixed and 2 swivel castors, wheel diameter 100 mm, tread thermoplastic rubber
• Maximum operation of eccentric lever at payloads up to 300 kg
• Drawer: internal W490 x D560 mm, load capacity 100 kg, 90% partial extension
• Underframe shelf depth: 650 mm, compartment height: 620 mm
