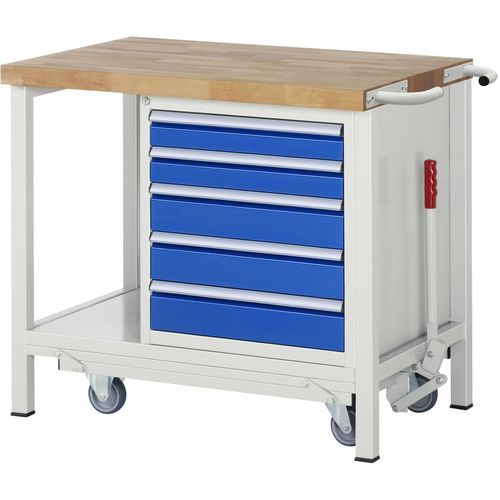

Beech workbench 8171

for workshops5-drawermobile

Description

• Beech solid worktop, thickness 40 mm.
• Beech lamellas finger-jointed. Front edge radius, other edges chamfered. Surface protected with eco-friendly lacquer oil. Worktop produced 100% in-house from PEFC-certified raw material from sustainable regional forestry.
• System underframe, W995 x D650 x H840 mm.
• 4-leg welded frame made of profile steel tube (45 x 45 x 2 mm) with depth braces (top and bottom). Frame feet with end caps including anti-slip studs for stable support.
• Under-mounted chassis with eccentric lever (right). Operation of the eccentric lever allowed only up to a maximum payload of 300 kg. Chassis retractable and extendable. Chassis with 2 rigid and 2 swivel castors (wheel diameter 100 mm, build height 125 mm, tread thermoplastic rubber, wheel body polypropylene). Rigid castors left, swivel castors right (wheel plate fixing). Lower shelf (depth 650 mm, rear flush with system underframe, compartment height 620 mm).
• Sliding handles (supplied loose).

Equipment

• 1 underframe container on the right, W580 x D650 x H620 mm, divided as: 5 drawers (2 × H90, 3 × H120 mm).
• Drawer size L (internal W490 x D560 mm), load capacity 100 kg. Roller-mounted partial-extension rails (90% extension) with self-return and anti-rebound. Usable drawer height equals front height minus 15 mm. Drawer pan fully closed to accept drawer divider sets.
• Continuous handle strip ErgoScript®: steel base with aluminium-coloured overlay and integrated transparent cover (including labeling strip).
• Central lock (pin cylinder lock with 2 keys).

Technical data (overview)
Extension type: Partial-extension 90%
Width: 1000 mm
Mobile load capacity: 450 kg
Stationary load capacity: 1250 kg
Height: 880 mm
Number of drawers: 5
Depth: 700 mm
Top type: Beech solid worktop
Top thickness: 40 mm
Mobility: Lowerable chassis


Technical specifications

• Model: 8171
• Brand: RAU
• EAN: 4040376988249
• Width (standard configuration): 1000 mm
• Depth: 700 mm
• Height: 880 mm
• Worktop type: Beech solid, thickness 40 mm, finger-jointed lamellas
• Drawers: 5 (2 × H90, 3 × H120), internal drawer size L: W490 x D560 mm, load capacity 100 kg
• Extension: Roller-mounted partial-extension rails, 90% extension, self-return and anti-rebound
• Mobile load capacity: 450 kg
• Stationary load capacity: 1250 kg
• Frame: 4-leg welded frame of profile steel tube (45 x 45 x 2 mm) with depth braces
• Chassis: Lowerable chassis, 2 rigid + 2 swivel castors, eccentric lever (right), operation up to max. payload 300 kg
• Worktop finish: Lacquer oil (eco-friendly)
• Delivery state: Delivered assembled (see product page)
