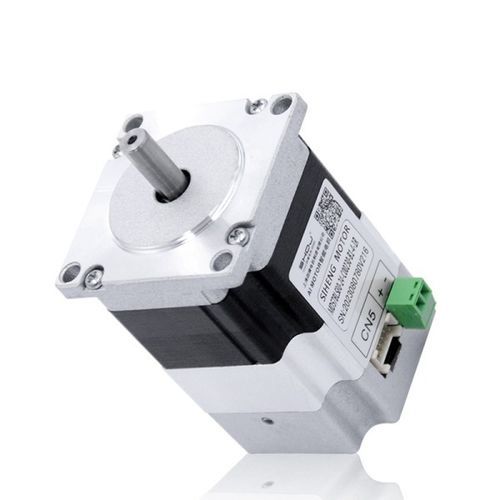

Brushless servomotor MD57AIS77-24-00610-1R
DC24 Vwith brake

Brushless servomotor - MD57AIS77-24-00610-1R - Shanghai Siheng Motor Co., Ltd - DC / 24 V / with brake
Brushless servomotor - MD57AIS77-24-00610-1R - Shanghai Siheng Motor Co., Ltd - DC / 24 V / with brake
Brushless servomotor - MD57AIS77-24-00610-1R - Shanghai Siheng Motor Co., Ltd - DC / 24 V / with brake - image - 2
Brushless servomotor - MD57AIS77-24-00610-1R - Shanghai Siheng Motor Co., Ltd - DC / 24 V / with brake - image - 3
Add to favorites
Compare this product

Characteristics

Type
DC, brushless
Voltage
24 V
Configuration
permanent magnet, with brake
Protection class
IP65
Number of poles
10-pole
Applications
for robotics, industrial, spindle
Other characteristics
integrated-drive, closed-loop
Power

32 W, 60 W, 85 W
(0.04 hp, 0.08 hp, 0.12 hp)

Intensity

2.9 A, 6.2 A

Torque

0.96 Nm
(0.70806 ft.lb)

Rotational speed

Min.: 1,000 rpm
(6,283.1853 rad.min-1)

Max.: 2,100 rpm
(13,194.6891 rad.min-1)

Diameter

57 mm
(2.24 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Technical Parameters Technical Specifications Dimension Product Tags: BLDC motor Brushless motor Closed-cloop stepper motor DC servo Motor Motor Driver Servo motor and driver Stepper motor Category: Intergrated DC servo motor and driver Characteristics / Technical Specifications: Product type: AI Integrated DC Servo Motor and driver Series: 57mm Integrated driver Brushless DC technology Closed-loop control Application: Automation, robotics, CNC, industrial control
