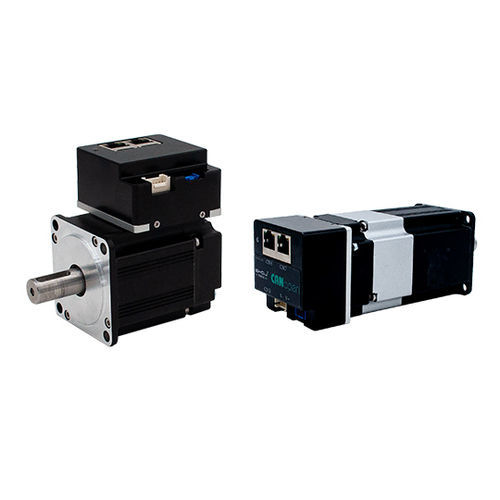

DC servomotor BMD80AIS80-48-C02430-B2-5-1C

60 V48 Vwith brake

Features: - 17-bit and 23-bit absolute value photoelectric encoder, with high-end and high responsiveness. - Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm. - Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start. - Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements. - Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds. - Comfort: Heat and noise are significantly reduced. Product specifications: - Model: BMD80AIS80-48-C02430-B2-5-1C - Voltage (VAC): 48 - Current (A): 20±10% - Torque (Nm): 2.4 - Weight (kg): Without Brake - Body Length (mm): 80 Motor Specifications: - Rated Voltage (V): 48 - Rated Power (W): 750 - Rated Current (A): 20 ± 10% - Rated Torque (N.m): 2.4 - Peak Torque (N.m): 4.8 - Rated Speed (rpm): 3000 ± 10% - Maximum Speed (rpm): 3200 ± 10% - Length (L mm): 80 - Length (L mm) + Shaft Length (mm): 115 - Line Resistance (Ω): 0.08 ± 10% - Line Inductance (mH): 0.24 ± 20% - Moment of Inertia (kg·m²×10⁻⁴): 1.72 ± 10% - Torque Coefficient (Nm/A): 0.12 ± 10% - Number of Rotor Pole Pairs (P): 5 - Motor Insulation Class: Class F - Protection Level: IP54 Communication Protocols: CANopen, EtherCAT Wiring Definitions: - CANopen and EtherCAT wiring tables provided for CN1, CN5, CN7, CN8, CN9 connectors, including terminal numbers, names, and functions (see product page for detailed tables). Key technical characteristics / specifications: - Encoder: 17-bit/23-bit absolute value photoelectric - Rated Voltage: 48V - Rated Power: 750W - Rated Current: 20A ±10% - Rated Torque: 2.4 Nm - Peak Torque: 4.8 Nm - Rated Speed: 3000 rpm ±10% - Max Speed: 3200 rpm ±10% - Protection: IP54 - Insulation: Class F - Communication: CANopen, EtherCAT - Overload resistance: up to 3x rated torque - Low heat and noise - Dynamic response: tens of milliseconds
