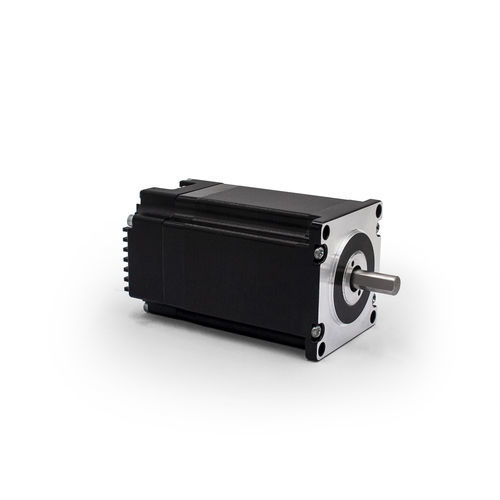

Hybrid stepper motor 57

24 V48 VNEMA 23

Overview
This product is a 57 mm-flange hybrid stepper motor with an integrated driver designed for industrial applications requiring precise position control.

Key features & application notes

• Product type: 57-series hybrid stepper motor (model prefix MD57HS) with integrated driver; supports dual supply voltages (24 V / 48 V).
• Parameter trends:
  • Generally, longer motor length (Len.) corresponds to higher torque (Tor.) — e.g., 139 mm-length variants can deliver up to 2.5 N·m of torque.
  • Variations in resistance (Res.) and inductance (Ind.) influence the motor’s response speed and heat generation.
• Typical applications: equipment requiring precise position control such as 3D printers, CNC machines, automated assembly lines and precision instruments.

Technical specifications

• Series / model prefix: MD57HS (57-series hybrid stepper)
• Frame / flange size: 57 mm
• Driver: integrated driver (built into motor assembly)
• Supply voltage: dual support 24 V / 48 V
• Torque example: up to 2.5 N·m for 139 mm length variant
• Relevant parameters: Length (Len.), Torque (Tor.), Resistance (Res.), Inductance (Ind.) — greater Len. generally → greater Tor.; Res./Ind. affect speed and heating
• Typical uses: 3D printing, CNC, automated assembly, precision instruments
• Category: integrated stepper motor
