Stepper motor 86

24 V28Vcompact

Overview

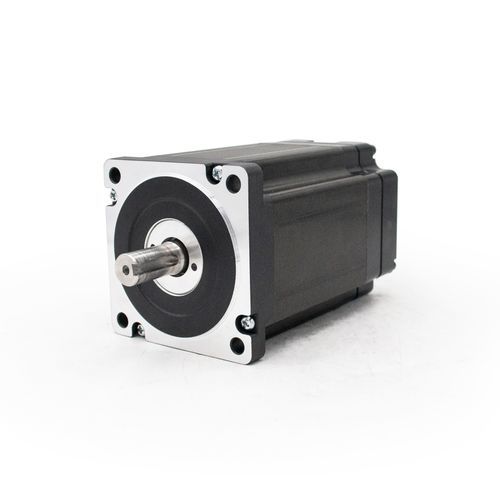

This 86-series stepper motor integrates the motor body and driver into a single housing, eliminating the need for a separate driver, saving installation space and simplifying wiring.

1. Core Integration Advantage
As a driver-integrated motor, it combines the stepper motor body and drive circuit in one housing. This removes the need for an external driver, reduces wiring complexity (no extra cables between motor and driver) and is suitable for compact automation setups or small equipment.

2. Parameter Characteristics (Based on the Table)

• Voltage & Current: Universal compatibility with 24 V / 28 V dual voltage and a 6 A rated current.
• Torque & Size: Torque ranges from 3.44 N·m to 10.6 N·m, corresponding to motor lengths from 104 mm to 184 mm. Increasing motor length raises available torque to match different load requirements.
• Electrical Performance: Low winding resistance (0.42 Ω – 0.7 Ω) and low inductance (3.2 mH – 8 mH), reducing torque drop at high speeds and improving dynamic response.

3. Application Suitability
Well suited for equipment where space savings and simplified wiring are priorities, including small CNC machines, precision conveyors, automated sorting systems and compact robotic arms.

Technical specifications

• Series: 86-series
• Flange: 86 mm
• Integrated driver: Yes (motor body + driver in single unit)
• Voltage: 24 V / 28 V (dual voltage compatibility)
• Rated current: 6 A
• Torque range: 3.44 N·m – 10.6 N·m
• Available motor lengths: 104 mm – 184 mm
• Winding resistance: 0.42 Ω – 0.7 Ω
• Inductance: 3.2 mH – 8 mH
• Typical applications: small CNC machines, precision conveyors, automated sorting systems, compact robotic arms
• Category: Integrated stepper motor
