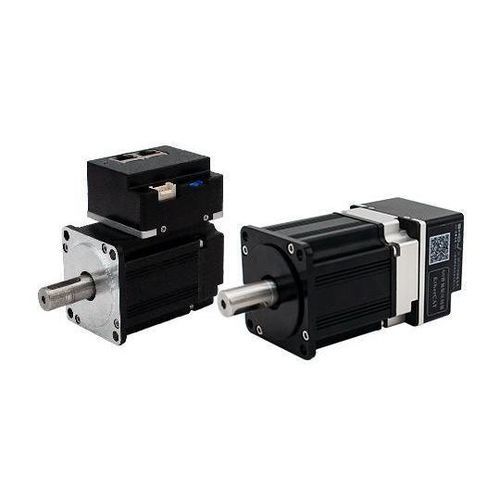

DC servo-motor MD60AIS75 series

36 V24 V48 V

Features: - 17-bit 23-bit absolute value photoelectric encoder, with high-end and high responsiveness - Speed: Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm - Adaptability: Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start - Stability: Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements - Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds - Comfort: Heat and noise are significantly reduced Model Specifications: - MD60AIS75-48-C01330-B2-5-1C (Ultra-short CAN Interface) - MD60AIS75-48-C01330-B2-5-1C-Z (CAN with Rear-mounted) - MD60AIS75-48-C01330-B2-5-1E (EtherCAT with Rear-mounted Enclosure) Technical Specifications: - Rated Voltage: 48V - Rated Power: 400W - Rated Current: 10A - Rated Torque: 1.27 Nm - Rated Speed: 3000 rpm ±10% - Max Speed: 3600 rpm ±10% - Back EMF: 8.3 V/KRPM - Line Resistance: 0.31 Ω - Line Inductance: 0.62 mH - Moment of Inertia: 0.52 kg·m²×10⁻⁴ - Torque Coefficient: 0.13 Nm/A - Electrical Time Constant: 1.58 ms - Number of Rotor Pole Pairs: 5 - Insulation Class: F - Protection Level: IP54 Communication Protocols: - CANopen, EtherCAT Wiring Definitions: - CANopen Wiring: Terminals for 485A, 485B, GND, CANH, CANL - EtherCAT Wiring: Terminals for TD+, TD-, RD+, RD- Category: Integrated DC servo motor and driver Tag: AC servo motor and driver
