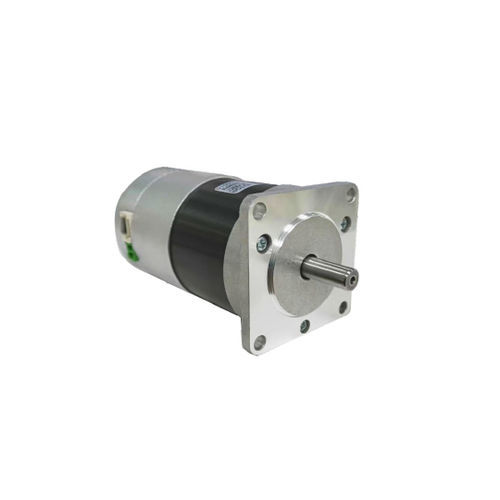

DC servomotor 57BLYS Series

24 V

Features: - 17-bit / 23-bit absolute value photoelectric encoder, providing high-end and high responsiveness. - Good high-speed performance: rated speed up to 3000 rpm, maximum speed up to 6000 rpm. - Strong overload resistance: can withstand load three times the rated torque, ideal for applications with instantaneous load fluctuations and requiring fast start. - Smooth low-speed operation: no stepping operation phenomenon as seen in stepper motors during low-speed operation. Suitable for high-speed response requirements. - Short dynamic response time for acceleration and deceleration, generally within tens of milliseconds. - Significantly reduced heat and noise. Product specifications: Model | Voltage (VAC) | Current (A) | Torque (Nm) | Weight (kg) | Body Length (mm) MD57BLYS85-24-00230-1R001 | 24V | 2.8A | 0.16 | - | 85.5 MD57BLYS105-24-00330-1R001 | 24V | 5.6A | 0.32 | - | 105.5 MD57BLYS125-24-00530-1R001 | 24V | 8.4A | 0.48 | - | 125.5 MD57BLYS145-24-C00630-B1-4-1R | 24V | 11.2A | 0.64 | - | 145 Motor Specifications: - Winding Connection Method: Star Connection - Encoder Type: 17 – bit Absolute Encoder - Shaft Run – out: 0.025mm - Radial Clearance: 0.06mm@450g - Axial Clearance: 0.08mm@450g - Maximum Radial Load: 15N@20MM from the Flange - Maximum Axial Load: 10N - Insulation Class: B – class - Dielectric Withstand Voltage: 500VAC for 1 minute - Dielectric Resistance: Minimum 100Ω, 500VDC - Insulation Resistance: Minimum 100Ω, 500VDC
