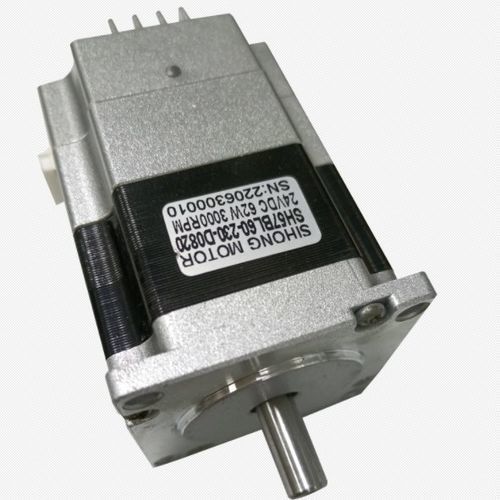

Brushless servomotor BLYS seriesDC24 Vclosed-loop
Add to favorites
Compare this product
Characteristics
- Type
- DC, brushless
- Voltage
- 24 V
- Other characteristics
- integrated-drive, closed-loop
- Power
50 W, 100 W, 150 W, 200 W
(0.07 hp, 0.14 hp, 0.2 hp, 0.27 hp)- Intensity
2.8 A, 5.6 A, 8.4 A, 11.2 A
- Torque
Min.: 0.16 Nm
(0.11801 ft.lb)Max.: 1.92 Nm
(1.416119 ft.lb)- Rotational speed
Min.: 3,000 rpm
(18,849.5559 rad.min-1)Max.: 4,300 rpm
(27,017.6968 rad.min-1)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Technical Specifications Dimension Tags: BLDC motor Brushless motor Closed-cloop stepper motor DC servo Motor Motor Driver Servo motor and driver Stepper motor Category: Integrated DC servo motor and driver Characteristics / Technical Specifications: Series: 57mm BLYS Series Type: Integrated DC Servo Motor and driver Brand: Siheng Motor Images and diagrams available for technical parameters and dimensions Tags: BLDC motor, Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, Servo motor and driver, Stepper motor
Catalogs
42BLYS
2 Pages
Other Shanghai Siheng Motor Co., Ltd products
Intergrated DC servo motor and driver
