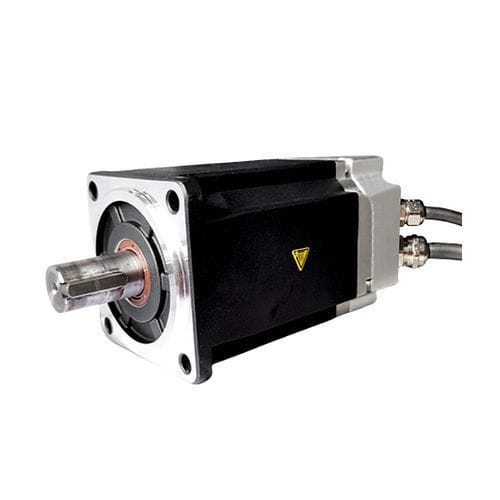

DC servo motor ZMD80AIS121-48-C02430-B1-5-1C

60 V48 Vwith brake

Features: - 17-bit 23-bit absolute value photoelectric encoder, with high-end and high responsiveness - Good high-speed performance, generally rated speed can reach 3000 rpm, maximum speed can reach 6000 rpm - Strong overload resistance, can withstand load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring fast start - Smooth low-speed operation, no stepping operation phenomenon similar to stepper motors will occur during low-speed operation. Suitable for occasions with high-speed response requirements - The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds - Heat and noise are significantly reduced Model: ZMD80AIS121-48-C02430-B1-5-1C - Voltage (VAC): 48 - Current (A): 20±10% - Torque (Nm): 0.12±10% Product Details - ZMD80AIS Series Integrated Low – Voltage Servo Motors with Wired Output - Communication Control Interface Definition (DB15 Male, Three – row) Motor Parameters - Body Length (mm): 121 - Rated Voltage (V): 48 - Rated Power (W): 750 - Rated Current (A): 20±10% - Rated Torque (N.m): 2.4 - Peak Torque (N.m): 4.8 - Rated Speed (rpm): 3000±10% - Maximum Speed (rpm): 3200±10% - Line Resistance (Ω): 0.08±10% - Line Inductance (mH): 0.24±20% - Moment of Inertia: 1.72±10% - Torque Coefficient (Nm/A): 0.12±10% - Number of Rotor Pole Pairs: 5p - Motor Insulation Class: Class F - Protection Level: IP65 Communication Control Interface Pinout - Terminal Number: 5, Function Definition: DIC, Wire Color: Yellow - Terminal Number: 4, Function Definition: DIR –, Wire Color: Green – Black - Terminal Number: 3, Function Definition: DIR +, Wire Color: Green - Terminal Number: 2, Function Definition: PLUS –, Wire Color: Blue – Black - Terminal Number: 1, Function Definition: PLUS +, Wire Color: Blue - Terminal Number: 10, Function Definition: D02 +, Wire Color: Purple - Terminal Number: 9, Function Definition: D01 –, Wire Color: Orange – Black - Terminal Number: 8, Function Definition: D01 +, Wire Color: Orange - Terminal Number: 7, Function Definition: DI2, Wire Color: White - Terminal Number: 6, Function Definition: DI1, Wire Color: Yellow – Black - Terminal Number: 15, Function Definition: CANL, Wire Color: Black - Terminal Number: 14, Function Definition: CANH, Wire Color: Red - Terminal Number: 13, Function Definition: RS485B, Wire Color: Gray – Black - Terminal Number: 12, Function Definition: RS485A, Wire Color: Gray - Terminal Number: 11, Function Definition: D02 –, Wire Color: Purple – Black Power Interface Definition (LCB40 – M) - Terminal Number: +, Function Definition: V +, Wire Color: Red - Terminal Number: –, Function Definition: V –, Wire Color: Black External Braking Resistor Interface Definition - Terminal Number: 1, Function Definition: P +, Wire Color: White - Terminal Number: 2, Function Definition: D –, Wire Color: Yellow – Green Outline drawing - Category: Integrated DC servo motor and driver - Tag: AC servo motor and driver Shanghai Siheng Motor Manufacturing Co., Ltd. established in 2013, focuses on AC servo motor, DC servo motor, stepper motor, driver, encoder, gearbox, etc. Technical Specifications: - Model: ZMD80AIS121-48-C02430-B1-5-1C - Voltage: 48V - Rated Power: 750W - Rated Current: 20±10% A - Rated Torque: 2.4 N.m - Peak Torque: 4.8 N.m - Rated Speed: 3000±10% rpm - Maximum Speed: 3200±10% rpm - Line Resistance: 0.08±10% Ω - Line Inductance: 0.24±20% mH - Moment of Inertia: 1.72±10% - Torque Coefficient: 0.12±10% Nm/A - Number of Rotor Pole Pairs: 5p - Motor Insulation Class: Class F - Protection Level: IP65
