DC servomotor BLS series
brushless24 Vwith integrated driver and coder

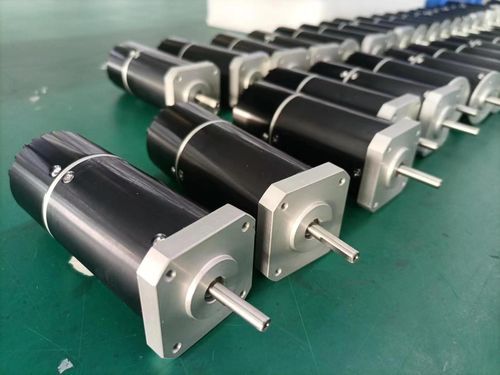

DC servomotor - BLS series - Shanghai Siheng Motor Co., Ltd - brushless / 24 V / with integrated driver and coder
DC servomotor - BLS series - Shanghai Siheng Motor Co., Ltd - brushless / 24 V / with integrated driver and coder
DC servomotor - BLS series - Shanghai Siheng Motor Co., Ltd - brushless / 24 V / with integrated driver and coder - image - 2
Add to favorites
Compare this product

Characteristics

Type
DC, brushless
Voltage
24 V
Configuration
with integrated driver and coder
Applications
for robotics, for machine tools
Other characteristics
motion control, integrated-drive, closed-loop
Power

33 W, 46 W, 50 W
(0.04 hp, 0.06 hp, 0.07 hp)

Intensity

1.9 A, 2.6 A, 2.8 A

Torque

Max.: 0.33 Nm
(0.243396 ft.lb)

Min.: 0.08 Nm
(0.059005 ft.lb)

Rotational speed

Max.: 6,500 rpm
(40,840.7045 rad.min-1)

Min.: 4,000 rpm
(25,132.7412 rad.min-1)

Diameter

42 mm
(1.65 in)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Technical Specifications Dimension Category: Integrated DC servo motor and driverTags: bldc motor, Brushless motor, Closed-cloop stepper motor, DC servo Motor, Motor Driver, servo motor and driver, stepper motor Characteristics / Technical Specifications Series: 42mm BLS Series Type: Integrated DC Servo Motor and Driver Brushless DC (BLDC) technology Closed-loop stepper motor functionality Integrated driver Dimension: 42mm Application: Automation, robotics, CNC, and other motion control systems

Catalogs

Siheng Catolog
Siheng Catolog
43 Pages
42bls
42bls
2 Pages
57bls
57bls
2 Pages
