Stepper motor 42 series
24 V

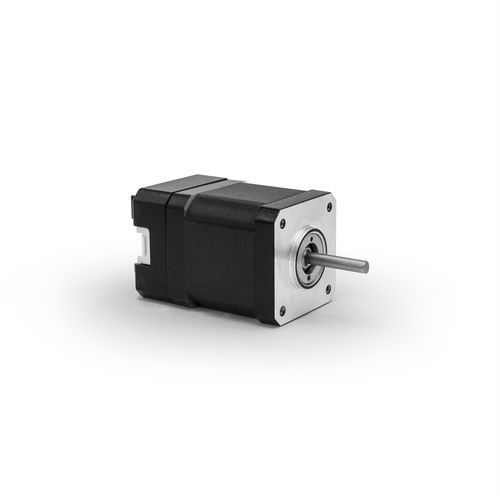

Stepper motor - 42 series - Shanghai Siheng Motor Co., Ltd - 24 V
Stepper motor - 42 series - Shanghai Siheng Motor Co., Ltd - 24 V
Stepper motor - 42 series - Shanghai Siheng Motor Co., Ltd - 24 V - image - 2
Stepper motor - 42 series - Shanghai Siheng Motor Co., Ltd - 24 V - image - 3
Stepper motor - 42 series - Shanghai Siheng Motor Co., Ltd - 24 V - image - 4
Add to favorites
Compare this product

Characteristics

Type
stepper
Voltage
24 V
Intensity

Max.: 2.1 A

Min.: 1.33 A

Torque

Max.: 0.6 Nm
(0.442537 ft.lb)

Min.: 0.22 Nm
(0.162264 ft.lb)

Diameter

42 mm
(1.65 in)

Description

Product

Technical parameters
Motor Model | Vol.(V) | Cur.(A) | Res.(Ω) | Ind.(mH) | Tor.(N.m) | Len.(mm)
MD42HS-335H-R | 24 | 1.33 | 2.2 | 3.1 | 0.22 | 53
MD42HS-395H-R | 24 | 1.68 | 1.7 | 3.8 | 0.3 | 59
MD42HS-475H-R | 24 | 2.1 | 1.5 | 3.8 | 0.46 | 67
MD42HS-605H-R | 24 | 2.1 | 1.6 | 2.9 | 0.6 | 80
MD42HS-335H-C | 24 | 1.33 | 2.2 | 3.1 | 0.22 | 53
MD42HS-395H-C | 24 | 1.68 | 1.7 | 3.8 | 0.3 | 59
MD42HS-475H-C | 24 | 2.1 | 1.5 | 3.8 | 0.46 | 67
MD42HS-605H-C | 24 | 2.1 | 1.6 | 2.9 | 0.6 | 80

Category
Integrated stepper motor

Key features / Technical specifications
  • Series: 42 Series Integrated Stepper Motor
  • Available motor models: MD42HS-335H-R, MD42HS-395H-R, MD42HS-475H-R, MD42HS-605H-R, MD42HS-335H-C, MD42HS-395H-C, MD42HS-475H-C, MD42HS-605H-C
  • Voltage: 24 V
  • Current range: 1.33 A – 2.1 A
  • Resistance range: 1.5 Ω – 2.2 Ω
  • Inductance range: 2.9 mH – 3.8 mH
  • Torque range: 0.22 N·m – 0.6 N·m
  • Length (mm) range: 53 – 80
