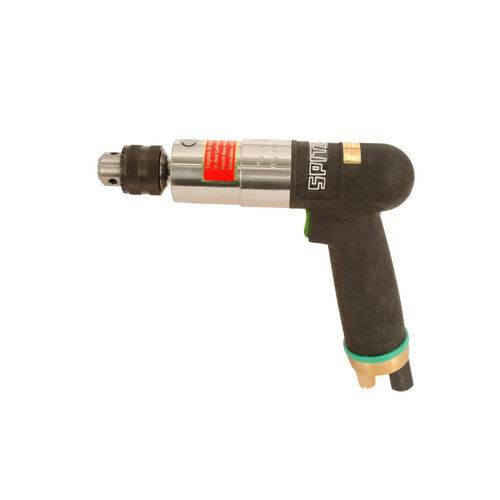

Hand drill 2 1261 0010

Product overview
Handheld, universal pistol drill for pneumatic operation. Suitable for drilling up to 13 mm in steel and designed for use in potentially explosive atmospheres (ATEX certified). Typical applications include energy and pipeline construction, metal and steel construction, mining and plant engineering.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: max. dia. 13 mm
• ATEX: IM2ExhIMb II2GExhIIBT6Gb
• Free speed: 850 rpm
• Power: 0.50 kW
• Weight: 2.3 kg

Technical Data

• Order no.: 2 1261 0010
• ATEX specification: IM2ExhIMb II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck max. dia.: 13.00 mm
• Drilling capacity in steel: 13.00 mm
• Speed (free): 850 rpm
• Power: 0.50 kW
• Air consumption: 0.60 m³/min
• Length with drill chuck: 245.00 mm
• Connection: R1/4" female
• Noise level LpA: 84.0 dB(A)
• Noise level LWA: 95.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 2.3 kg

Accessories
Service units

• Order No. 9 2406 0260: Portable service unit with pressure regulator 3/4"
• Order No. 9 2406 0630: Portable service unit with protection housing and pressure regulator 1/2"
• Order No. 9 2406 0650: Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• Order No. 9 3610 0410: Pneumatic hose ID 13.00 mm, 2.5 m length, screw-on claw coupling
• Order No. 9 3610 0420: Pneumatic hose ID 16.00 mm, 2.5 m length, screw-on claw coupling
• Order No. 9 3610 0430: Pneumatic hose ID 19.00 mm, 2.5 m length, screw-on claw coupling
• Order No. 9 2102 0020: Claw coupling, metal sealing, 3/4” ID

Miscellaneous Accessories

• Order No. 9 9910 0090: Carrying case
• Order No. 9 9902 0120: Multi oil for cleaning and protection

Fields of application

• Energy and pipeline construction
• Metal industry and steel construction
• Mining
• Plant and mechanical construction

Technical specifications

• Order number: 2 1261 0010
• ATEX: IM2ExhIMb II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck maximum diameter: 13.00 mm
• Drilling capacity in steel: 13.00 mm
• Free speed: 850 rpm
• Power: 0.50 kW
• Air consumption: 0.60 m³/min
• Length with drill chuck: 245.00 mm
• Connection: R1/4" female
• Noise levels: LpA 84.0 dB(A), LWA 95.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 2.3 kg
• Primary fields of application: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction
