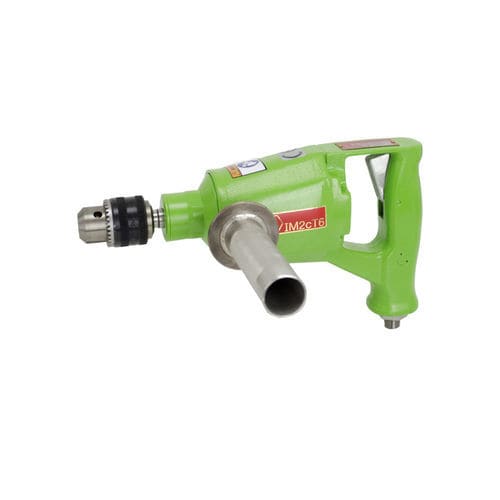

Hand drill 2 1311 0010

Product description
The pneumatic D-handle drill with Morse taper MT1 is designed for drilling up to 13 mm diameter. It is suitable for underground mining applications and certified for use in explosive area group 1 (underground coal mining), category M2 (ATEX IM2ExhIMbT6). Compact and balanced for use in confined and industrial environments.

Main attributes

• Energy source: Pneumatic
• Drill chuck: max. dia. 13 mm (MT1)
• Handle: D-handle for improved control
• Suitable for underground mining
• ATEX: IM2ExhIMbT6

Technical Data
ORDER NO.: 2 1311 0010
ATEX Specification: IM2ExhIMbT6
Energy source: Pneumatic
Operating pressure: 6 bar
Drill chuck dia.: 13.00 (MT1) mm
Drilling capacity in steel: 13.00 mm
Speed (under load): 650 rpm
Power: 0.65 kW
Air consumption: 0.68 m³/min
Length with drill chuck: 281.00 mm
Connection: R3/8" male
Noise level LpA: 89.0 dB(A)
Noise level LWA: 100.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 5.4 kg
Fields of application / branch: Energy and pipeline construction; Mining; Plant and mechanical construction

Accessories
Service units
9 2406 0260: Portable service unit with pressure regulator 3/4"
9 2406 0630: Portable service unit with protection housing and pressure regulator 1/2"
9 2406 0650: Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more
9 3610 0410: Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
9 3610 0420: Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
9 3610 0430: Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
9 2102 0020: Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories
9 9910 0090: Carrying case
9 9902 0120: Multi oil for cleaning and protection

Technical specifications

• Order no.: 2 1311 0010
• ATEX Specification: IM2ExhIMbT6
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck diameter: 13.00 (MT1) mm
• Drilling capacity in steel: 13.00 mm
• Speed (under load): 650 rpm
• Power: 0.65 kW
• Air consumption: 0.68 m³/min
• Length with drill chuck: 281.00 mm
• Connection: R3/8" male
• Noise level LpA: 89.0 dB(A)
• Noise level LWA: 100.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.4 kg
• Fields of application: Energy and pipeline construction; Mining; Plant and mechanical construction
