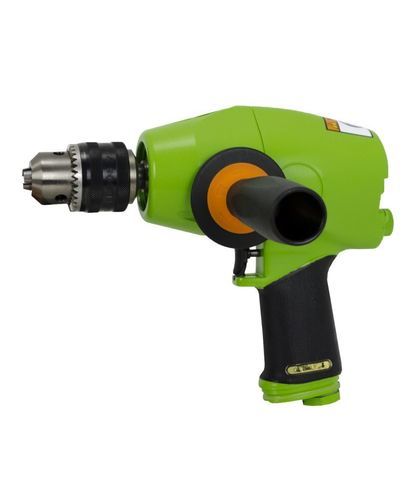

Pneumatic drill 2 1362 0010

compactpistolATEX

Description
Handy, universal pistol-style drill for pneumatic operation. Drill chuck accepts bits up to 13 mm. Speed selectable via 4-step switch, reversible rotation (left/right). Certified for use in explosive atmospheres (ATEX).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: max. dia. 13 mm
• ATEX: II2GExhIIBT5Gb
• Speed (no-load): 450 / 650 / 850 / 1,000 rpm (reversible)
• Power: 1.00 kW
• Air consumption: 1.15 m3/min
• Length with drill chuck: 230 mm
• Connection: R1/4" female
• Noise level LpA: 84.0 dB(A)
• Noise level LWA: 95.0 dB(A)
• Vibration level: <2,5 m/s²
• Weight: 3.7 kg

Fields of application / branch

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical engineering
• Underwater work

Accessories
Service units

• ORDER NO.: 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• ORDER NO.: 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
• ORDER NO.: 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• ORDER NO.: 9 3610 0410 — Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
• ORDER NO.: 9 3610 0420 — Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
• ORDER NO.: 9 3610 0430 — Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
• ORDER NO.: 9 2102 0020 — Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories

• ORDER NO.: 9 9910 0090 — Carrying case
• ORDER NO.: 9 9902 0120 — Multi oil for cleaning and protection

Technical specifications

• ORDER NO.: 2 1362 0010
• ATEX: II2GExhIIBT5Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck max. dia.: 13.00 mm
• Drilling capacity in steel dia.: 30.00 mm
• Speed (no-load): 450/650/850/1,000 rpm (reversible)
• Power: 1.00 kW
• Air consumption: 1.15 m3/min
• Length with drill chuck: 230.00 mm
• Connection: R1/4" female
• Noise level LpA: 84.0 dB(A)
• Noise level LWA: 95.0 dB(A)
• Vibration level: <2,5 m/s²
• Weight: 3.7 kg
