Pneumatic core drilling machine 2 1336 0010
for concretehand-heldfor hazardous areas

Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 2
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 3
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 4
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 5
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 6
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 7
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 8
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 9
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 10
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 11
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 12
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 13
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 14
Pneumatic core drilling machine - 2 1336 0010 - Spitznas Maschinenfabrik GmbH - for concrete / hand-held / for hazardous areas - image - 15
Add to favorites
Compare this product
Go to the Spitznas Maschinenfabrik GmbH website for more information

Characteristics

Type
pneumatic
Other characteristics
hand-held, for concrete, ATEX, for hazardous areas
Drill diameter

Min.: 0 mm
(0 in)

Max.: 160 mm
(6.3 in)

Rotational speed

300 rpm, 700 rpm, 1,350 rpm
(1,884.96 rad.min-1, 4,398.23 rad.min-1, 8,482.3 rad.min-1)

Description

Product description

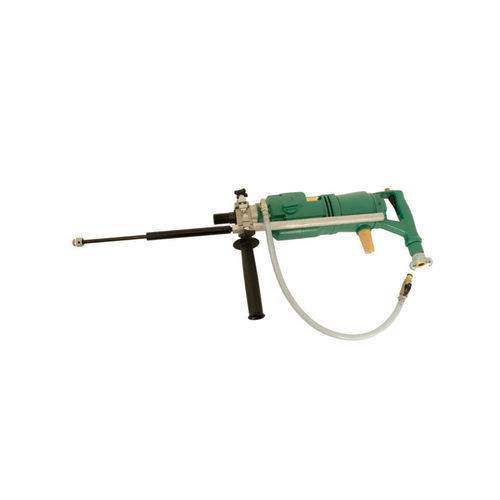

The pneumatic core drill unit for hand-operated drilling in concrete, stone and masonry up to 160 mm diameter. Designed for use in ATEX areas (equipment group I).

Main attributes
  • Order Number: 2 1336 0010
  • Energy source: Pneumatic
  • Operating pressure: 6 bar
  • Free-hand drilling: up to dia. 82 mm
  • Drilling with drill rig: up to dia. 160 mm
  • Mining version
  • ATEX: IM2ExhIMbT6

Technical data
  • Order no.: 2 1336 0010
  • ATEX specification: IM2ExhIMbT6
  • Energy source: Pneumatic
  • Operating pressure: 6 bar
  • Drill bit adapter: 1 1/4" UNC male / R1/2" female
  • Drill bit max. dia.: 160.00 mm
  • To use for: free-hand drilling / with drill rig
  • Gear stages: 3
  • Speed stages: 300 / 700 / 1,350 rpm
  • Torque stages: 90 / 56 / 29 Nm
  • Power: 2.80 kW
  • Air consumption: 3.50 m³/min
  • Tool adapter center dia.: 60.00 mm
  • Total length: 594.00 mm
  • Connection: R3/4" male
  • Cooling connection: Gardena system
  • Noise level LpA: 85.0 dB(A)
  • Noise level LWA: 96.0 dB(A)
  • Vibration level: <2.5 m/s²
  • Weight: 17.7 kg
  • Fields of application / branch: Energy and pipeline construction; Mining; Plant and mechanical construction

Accessories (selected)

Drill bits
  • 9 2527 0010 | 16.00 mm | Optimum drilling speed: 4,500 rpm | Peripheral speed: 3.53 m/s | Connection: R1/2" | Usable length: 320.00 mm
  • 9 2527 0020 | 20.00 mm | Optimum drilling speed: 3,200 rpm | Peripheral speed: 3.35 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0030 | 25.00 mm | Optimum drilling speed: 2,500 rpm | Peripheral speed: 3.27 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0040 | 30.00 mm | Optimum drilling speed: 2,200 rpm | Peripheral speed: 3.45 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0050 | 35.00 mm | Optimum drilling speed: 1,900 rpm | Peripheral speed: 3.48 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0060 | 40.00 mm | Optimum drilling speed: 1,700 rpm | Peripheral speed: 3.55 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0070 | 45.00 mm | Optimum drilling speed: 1,500 rpm | Peripheral speed: 3.53 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0080 | 50.00 mm | Optimum drilling speed: 1,300 rpm | Peripheral speed: 3.40 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0090 | 55.00 mm | Optimum drilling speed: 1,200 rpm | Peripheral speed: 3.45 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0100 | 60.00 mm | Optimum drilling speed: 1,100 rpm | Peripheral speed: 3.45 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0110 | 68.00 mm | Optimum drilling speed: 1,000 rpm | Peripheral speed: 3.40 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2527 0120 | 72.00 mm | Optimum drilling speed: 900 rpm | Peripheral speed: 3.30 m/s | Connection: R1/2" | Usable length: 400.00 mm
  • 9 2526 0140 | 82.00 mm | Optimum drilling speed: 800 rpm | Peripheral speed: 3.35 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0160 | 92.00 mm | Optimum drilling speed: 680 rpm | Peripheral speed: 3.20 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0180 | 102.00 mm | Optimum drilling speed: 620 rpm | Peripheral speed: 3.25 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0200 | 112.00 mm | Optimum drilling speed: 570 rpm | Peripheral speed: 3.28 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0220 | 122.00 mm | Optimum drilling speed: 520 rpm | Peripheral speed: 3.26 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0240 | 132.00 mm | Optimum drilling speed: 470 rpm | Peripheral speed: 3.20 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0260 | 142.00 mm | Optimum drilling speed: 420 rpm | Peripheral speed: 3.07 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm
  • 9 2526 0280 | 152.00 mm | Optimum drilling speed: 390 rpm | Peripheral speed: 3.06 m/s | Connection: 1 1/4" UNC | Usable length: 450.00 mm

Drill rig
  • 2 1317 9500 | Drill rig for angular holes under 45°–90° up to dia. 160 mm

Clamp for pipes
  • 2 1313 8500 | Clamp for pipes, to use with drill rig type 9 4101 0080 | For pipe dia.: 150.00 up to 600.00 mm

Drill chucks
  • 9 2902 0280 | Adapter from 1 1/4" UNC female to M18x1.5 male
  • 9 2902 0290 | Adapter from 1 1/4" UNC female to Weldon shank 1 1/4" female
  • 9 2902 0350 | Adapter from 1 1/4" UNC female to Weldon 3/4" female
  • 9 2902 0240 | Adapter from R 1/2" for drill chuck type 9 2911 0040 and type 9 2911 0050
  • 9 2911 0040 | Drill chuck for drill bit dia. 3 up to 16 mm
  • 9 2911 0050 | Drill chuck for drill bit dia. 1.5 up to 13 mm

Extensions for drill bits
  • 2 1315 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: R1/2" female | Length: 300.00 mm
  • 2 1319 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: 1 1/4" UNC male | Length: 100.00 mm
  • 2 1318 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: 1 1/4" UNC male | Length: 200.00 mm
  • 2 1314 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: 1 1/4" UNC male | Length: 300.00 mm
  • 2 1316 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: 1 1/4" UNC male | Length: 400.00 mm
  • 2 1322 7020 | Extension | Machine side: 1 1/4" UNC female | Drill bit side: 1 1/4" UNC male | Length: 500.00 mm

Service units
  • 9 2406 0260 | Service unit, portable, pressure regulator 3/4"
  • 9 2406 0650 | Service unit, portable, protection housing, pressure regulator 3/4"

Hoses and more
  • 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw coupling
  • 9 2102 0020 | Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories
  • 5 8002 9100 | Water tank 10 l
  • 2 1315 9500 | Tool set
  • 9 9910 0080 | Carrying case
  • 9 9902 0120 | Multi oil for cleaning and protection
