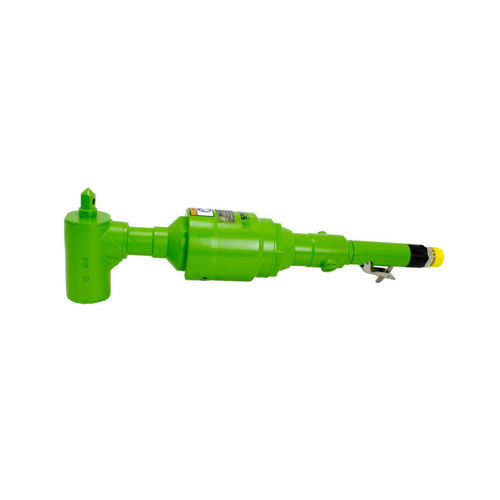

Hand drill 2 1701 0010

Description
The pneumatic corner drill for drilling and reaming with MT2 tool holder.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Tool holder: MT2
• Actuation: Safety lever valve
• Direction of rotation: right
• Application: Underground mining
• ATEX: IM2ExhIMbT6

Accessories

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"
• 9 3610 0410 — Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0420 — Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0430 — Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
• 9 2102 0020 — Claw coupling, metal sealing, 3/4” ID
• 9 9902 0120 — Multi oil for cleaning and protection

Technical Data
ORDER NO.: 2 1701 0010
ATEX Specification: IM2ExhIMbT6
Energy source: Pneumatic
Operating pressure: 6 bar
Shank: MT2
Valve type: Safety lever valve
Direction of rotation: right
Drilling capacity in steel: 23.00 mm
Reaming capacity in steel: 17.00 mm
Torque: 48 Nm
Speed (free): 540 rpm
Speed (under load): 270 rpm
Power: 1.33 kW
Air consumption: 1.4 m³/min
Spindle stroke: 35.00 mm
Distance of center: 30.00 mm
Height with feed spindle: 160.00 mm
Connection: R3/4" male
Noise level LpA: 92.0 dB(A)
Noise level LWA: 103.0 dB(A)
Vibration level: 3.3 m/s²
Weight: 8.5 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Specifications / technical specifications

• ORDER NO.: 2 1701 0010
• ATEX Specification: IM2ExhIMbT6
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Shank / Tool holder: MT2
• Valve type: Safety lever valve
• Direction of rotation: right
• Drilling capacity in steel: 23.00 mm
• Reaming capacity in steel: 17.00 mm
• Torque: 48 Nm
• Speed (free): 540 rpm
• Speed (under load): 270 rpm
• Power: 1.33 kW
• Air consumption: 1.4 m³/min
• Spindle stroke: 35.00 mm
• Distance of center: 30.00 mm
• Height with feed spindle: 160.00 mm
• Connection: R3/4" male
• Noise level LpA: 92.0 dB(A)
• Noise level LWA: 103.0 dB(A)
• Vibration level: 3.3 m/s²
• Weight: 8.5 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction
