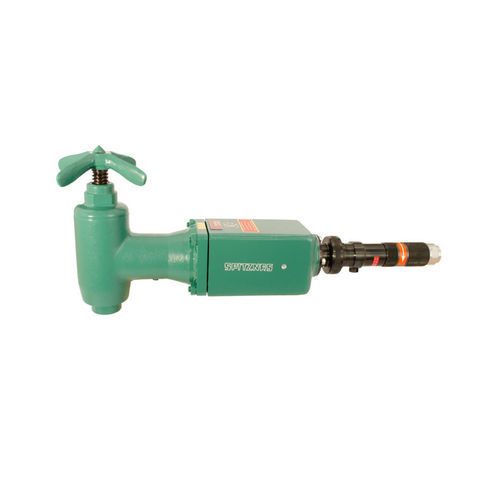

Pneumatic drill 2 2104 0030

heavy-dutyright-angle

Short description
Pneumatic corner drill for drilling and reaming. Fitted with MT4 tool holder and reversible rotation (right/left). Designed for heavy-duty steel applications with drilling capacity up to 55 mm and reaming up to 50 mm.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Tool holder: MT4
• Actuation: Safety twist throttle
• Direction of rotation: right/left

Technical Data (table)
ORDER NO.: 2 2104 0030
Energy source: Pneumatic
Operating pressure: 6 bar
Shank: MT4
Valve type: Safety twist throttle
Direction of rotation: right/left
Drilling capacity in steel: 55.00 mm
Reaming capacity in steel: 50.00 mm
Torque: 116 Nm
Speed (free): 400 rpm
Speed (under load): 180 rpm
Power: 2.2 kW
Air consumption: 2.00 m³/min
Spindle stroke: 55.00 mm
Distance of center: 40.00 mm
Height with feed spindle: 252.00 mm
Connection: R3/4" female
Noise level LpA: 90.0 dB(A)
Noise level LWA: 101.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 17.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• 9 3610 0410 — Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0420 — Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
• 9 3610 0430 — Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
• 9 2102 0020 — Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection

Technical specifications

• Order number: 2 2104 0030
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Shank: MT4
• Valve type: Safety twist throttle
• Direction of rotation: right/left
• Drilling capacity in steel: 55.00 mm
• Reaming capacity in steel: 50.00 mm
• Torque: 116 Nm
• Speed (free): 400 rpm
• Speed (under load): 180 rpm
• Power: 2.2 kW
• Air consumption: 2.00 m³/min
• Spindle stroke: 55.00 mm
• Distance of center: 40.00 mm
• Height with feed spindle: 252.00 mm
• Connection: R3/4" female
• Noise level LpA: 90.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 17.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
