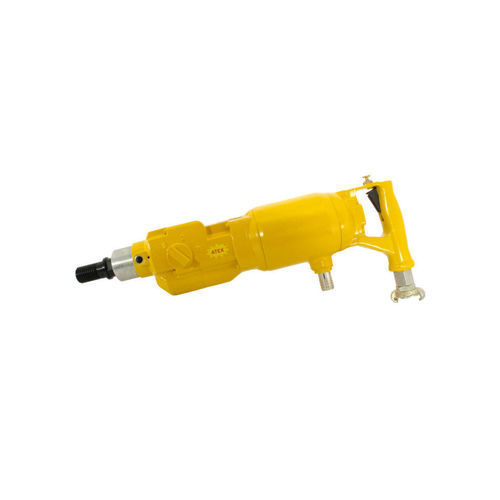

Wet cutting core drill 2 1355 0010

for concrete

Product overview
The pneumatic core drill unit for hand-operated and rig-guided drilling in concrete, stone and masonry. Free-hand drilling up to Ø82 mm; with drill rig up to Ø160 mm. Suitable for underwater work and certified for use in explosive atmospheres (ATEX II2GExhIIBT6Gb).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Free-hand drilling: up to Ø82 mm
• Drilling with drill rig: up to Ø160 mm
• Underwater operation
• ATEX: II2GExhIIBT6Gb

Technical data

• Order no.: 2 1355 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill bit adapter: 1 1/4" UNC male / R1/2" female
• Drill bit max. dia.: 160.00 mm
• Usage: Free-hand drilling up to 82 mm / with drill rig up to 160 mm
• Gear stages: 3
• Speed stages: 300 / 700 / 1,350 rpm
• Torque stages: 90 / 56 / 29 Nm
• Power: 2.80 kW
• Air consumption: 3.50 m³/min
• Tool adapter center dia.: 60.00 mm
• Total length: 594.00 mm
• Connection: R3/4" male
• Cooling connection: Gardena system
• Noise level LpA: 83.0 dB(A)
• Noise level LWA: 94.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 9.2 kg
• Fields of application: Energy and pipeline construction; Plant and mechanical construction; Underwater work

Accessories (selection)

• Drill bits (order no. / dia. [mm] / optimum speed [rpm] / peripheral speed [m/s] / connection / usable length [mm]):
  • 9 2527 0010 / 16.00 / 4,500 / 3.53 / R1/2" / 320.00
  • 9 2527 0020 / 20.00 / 3,200 / 3.35 / R1/2" / 400.00
  • 9 2527 0030 / 25.00 / 2,500 / 3.27 / R1/2" / 400.00
  • 9 2527 0040 / 30.00 / 2,200 / 3.45 / R1/2" / 400.00
  • 9 2527 0050 / 35.00 / 1,900 / 3.48 / R1/2" / 400.00
  • 9 2527 0060 / 40.00 / 1,700 / 3.55 / R1/2" / 400.00
  • 9 2527 0070 / 45.00 / 1,500 / 3.53 / R1/2" / 400.00
  • 9 2527 0080 / 50.00 / 1,300 / 3.40 / R1/2" / 400.00
  • 9 2526 0140 / 82.00 / 800 / 3.35 / 1 1/4" UNC / 450.00
  • 9 2526 0160 / 92.00 / 680 / 3.20 / 1 1/4" UNC / 450.00
  • 9 2526 0180 / 102.00 / 620 / 3.25 / 1 1/4" UNC / 450.00
  • 9 2526 0200 / 112.00 / 570 / 3.28 / 1 1/4" UNC / 450.00
  • 9 2526 0220 / 122.00 / 520 / 3.26 / 1 1/4" UNC / 450.00
  • 9 2526 0240 / 132.00 / 470 / 3.20 / 1 1/4" UNC / 450.00
  • 9 2526 0260 / 142.00 / 420 / 3.07 / 1 1/4" UNC / 450.00
  • 9 2526 0280 / 152.00 / 390 / 3.06 / 1 1/4" UNC / 450.00
• Drill rig: 2 1317 9500 — Drill rig for angular holes under 45°–90° up to dia. 160 mm
• Clamp for pipes: 2 1313 8500 — Clamp for pipes, to use with drill rig type 9 4101 0080 (for pipe dia. 150.00 up to 600.00 mm)
• Drill chucks and adapters (examples): 9 2902 0280 — Adapter from 1 1/4" UNC female to M18x1.5 male; 9 2911 0040 — Drill chuck for drill bit dia. 3 up to 16 mm; 9 2911 0050 — Drill chuck for drill bit dia. 1.5 up to 13 mm
• Extensions for drill bits (examples): 2 1315 7020 — Extension 300.00 mm (1 1/4" UNC female to R1/2" female); 2 1319 7020 — Extension 100.00 mm (1 1/4" UNC female to 1 1/4" UNC male); up to 500.00 mm extensions available
• Service & consumables (examples): 9 2406 0260 — Service unit, portable, pressure regulator 3/4"; 5 8002 9100 — Water tank 10 l; 9 9902 0120 — Multi oil for cleaning and protection

Technical specifications

• Order number: 2 1355 0010
• ATEX: II2GExhIIBT6Gb
• Energy: Pneumatic
• Operating pressure: 6 bar
• Adapter: 1 1/4" UNC male / R1/2" female
• Max drill bit diameter: 160.00 mm
• Usage: Free-hand up to 82 mm / with rig up to 160 mm
• Gears: 3
• Speeds: 300 / 700 / 1,350 rpm
• Torque: 90 / 56 / 29 Nm
• Power: 2.80 kW
• Air consumption: 3.50 m³/min
• Adapter center dia.: 60.00 mm
• Length: 594.00 mm
• Connection: R3/4" male
• Cooling: Gardena system
• Noise LpA / LWA: 83.0 / 94.0 dB(A)
• Vibration: <2.5 m/s²
• Weight: 9.2 kg
