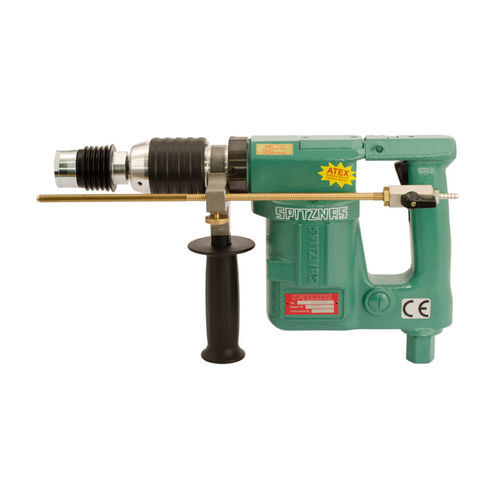

Pneumatic chisel rotary hammer 2 2408 0010

ATEX

Product overview
The pneumatic rotary hammer with SDS-plus shank is designed for drilling and hammer drilling in concrete up to 28 mm diameter. The impact mechanism can be switched on and off to allow rotary-only drilling.

Main attributes

• Order Number: 2 2408 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Tool holder: SDS plus
• Drilling capacity in concrete: 5.00 – 28.00 mm
• Application: Underground mining
• ATEX: IM2ExhIMbT6

Technical data
ORDER NO.: 2 2408 0010
ATEX Specification: IM2ExhIMbT6
Energy source: Pneumatic
Operating pressure: 6 bar
Tool holder: SDS plus
Drilling capacity in concrete: 5.00 up to 28.00 mm
Drilling capacity in steel: 5.00 up to 13.00 mm
Drilling capacity in wood: 5.00 up to 30.00 mm
Function: drilling / hammer drilling (impact mechanism switchable)
Speed (free): 625 rpm
Speed (under load): 440 rpm
Percussion (under load): 3,000 rpm
Percussion energy: 2.0 Joule
Power: 0.50 kW
Air consumption: 0.6 m³/min
Dimensions: 410 x 240 x 100 mm
Connection: R1/2" female
Exhaust connection: R3/8" female
Water connection: R1/4" female
Noise level LpA: 93.0 dB(A)
Noise level LWA: 102.0 dB(A)
Vibration level: 4.5 m/s²
Weight: 9.5 kg
Fields of application / branch: Energy and pipeline construction; Mining; Plant and mechanical construction

Accessories
Hard metal hammer drill bits SDS-plus (table)
ORDER NO. | Drill bit dia. [mm] | Usable length [mm]
9 2513 1550 | 5.00 | 100.00
9 2513 1560 | 6.00 | 100.00
9 2513 1570 | 8.00 | 100.00
9 2513 1580 | 10.00 | 100.00
9 2513 1590 | 10.00 | 200.00
9 2513 1610 | 12.00 | 100.00
9 2513 1620 | 12.00 | 200.00
9 2513 1630 | 14.00 | 100.00
9 2513 1640 | 14.00 | 200.00
9 2513 1660 | 16.00 | 250.00
9 2513 1680 | 20.00 | 250.00
9 2513 1700 | 22.00 | 200.00
9 2513 1710 | 22.00 | 400.00
9 2513 1730 | 25.00 | 200.00
9 2513 1740 | 25.00 | 400.00
More hammer drill bits on request.

Miscellaneous Accessories (table)
ORDER NO. | Description
9 2902 0200 | Quick-release chuck for dia. 1.5 up to dia. 13 mm shank
9 2902 0210 | Adapter SDS-plus for quick-release chuck
2 2404 9950 | Adapter SDS-plus R 1/2"
9 2406 0260 | Service unit, portable, pressure regulator 3/4"
9 2406 0650 | Service unit, portable, protection housing, pressure regulator 3/4"
9 9910 0050 | Carrying case
9 9902 0120 | Multi oil for cleaning and protection

Applications

• Energy and pipeline construction
• Mining
• Plant and mechanical construction
