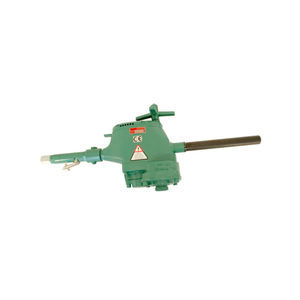

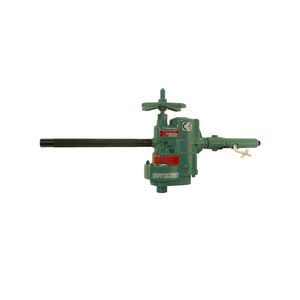

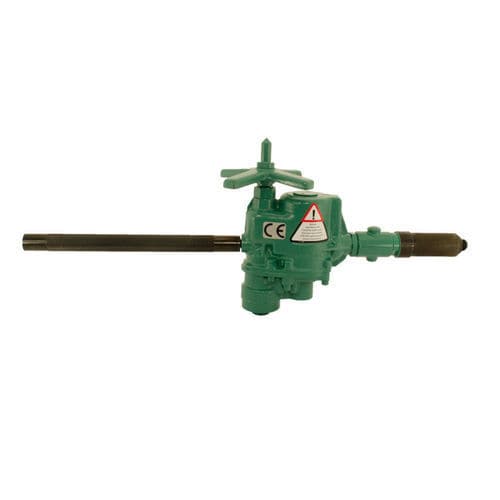

Pneumatic drill 2 1401 0030

Product description
Pneumatic drill with safety twist throttle, infinitely variable speed and drilling-depth adjustment, and clockwise rotation. Designed for industrial drilling operations where feed spindle control and MT2 tooling interface are required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT2
• Valve type: Twist throttle (safety twist throttle)
• Direction of rotation: clockwise

Accessories

• Service units: Order No. 9 2406 0260 – Portable service unit with pressure regulator 3/4“; Order No. 9 2406 0630 – Portable service unit with protection housing and pressure regulator 1/2“; Order No. 9 2406 0650 – Portable service unit with protection housing and pressure regulator 3/4“
• Hoses and more: Order No. 9 3610 0410 – Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling; Order No. 9 3610 0420 – Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling; Order No. 9 3610 0430 – Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling; Order No. 9 2102 0020 – Claw coupling, metal sealing, 3/4” ID
• Miscellaneous Accessories: Order No. 9 9902 0120 – Multi oil for cleaning and protection

Technical specifications

• Order No.: 2 1401 0030
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT2
• Valve type: Safety twist throttle
• Direction of rotation: clockwise
• Drilling dia. capacity in steel: 20.00 mm
• Reaming dia. capacity in steel: 17.00 mm
• Torque: 18 Nm
• Speed (free): 325 rpm
• Power: 0.68 kW
• Air consumption: 0.68 m³/min
• Height with feed spindle: 248.00 mm
• Connection: R3/8" male
• Noise level LpA: 93.5 dB(A)
• Noise level LWA: 104.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.0 kg
• Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
