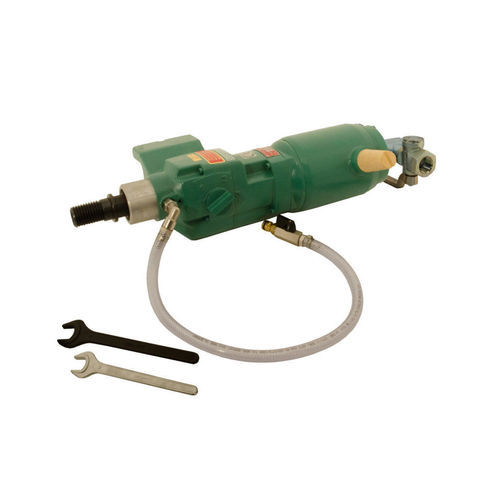

Pneumatic core drilling machine 2 1328 0050

with cooling systemATEX

Product description
The pneumatic core drill unit for mounting on a drill rig, designed to core-drill concrete, stone and masonry up to 300 mm diameter. Drill rig order no.: 9 4101 0090.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drilling with drill rig: up to dia. 300 mm
• ATEX: II2GExhIIBT6Gb

Technical Data
ORDER NO.: 2 1328 0050
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Drill bit adapter: 1 1/4" UNC male / R1/2" female
Drill bit max. dia.: 300.00 mm
To use for: with drill rig
Gear stages: 3
Speed stages: 300/700/1,350 rpm
Torque stages: 90/56/29 Nm
Power: 2.80 kW
Air consumption: 3.50 m³/min
Tool adapter center dia.: 60.00 mm
Total length: 516.00 mm
Connection: R3/4" male
Cooling connection: Gardena system
Noise level LpA: 85.0 dB(A)
Noise level LWA: 96.0 dB(A)
Vibration level: <2.5 m/s²
Weight: 12.7 kg
Fields of application / branch: Energy and pipeline construction; Plant and mechanical construction

Accessories
Drill bits
ORDER NO. | Drill bit dia. [mm] | Optimum drilling speed [rpm] | Peripheral speed [m/s] | Connection [inch] | Usable length [mm]
9 2527 0010 | 16.00 | 4,500 | 3.53 | R1/2" | 320.00
9 2527 0020 | 20.00 | 3,200 | 3.35 | R1/2" | 400.00
9 2527 0030 | 25.00 | 2,500 | 3.27 | R1/2" | 400.00
9 2527 0040 | 30.00 | 2,200 | 3.45 | R1/2" | 400.00
9 2527 0050 | 35.00 | 1,900 | 3.48 | R1/2" | 400.00
9 2527 0060 | 40.00 | 1,700 | 3.55 | R1/2" | 400.00
9 2527 0070 | 45.00 | 1,500 | 3.53 | R1/2" | 400.00
9 2527 0080 | 50.00 | 1,300 | 3.40 | R1/2" | 400.00
9 2527 0090 | 55.00 | 1,200 | 3.45 | R1/2" | 400.00
9 2527 0100 | 60.00 | 1,100 | 3.45 | R1/2" | 400.00
9 2527 0110 | 68.00 | 1,000 | 3.40 | R1/2" | 400.00
9 2527 0120 | 72.00 | 900 | 3.30 | R1/2" | 400.00
9 2526 0140 | 82.00 | 800 | 3.35 | 1 1/4" UNC | 450.00
9 2526 0160 | 92.00 | 680 | 3.20 | 1 1/4" UNC | 450.00
9 2526 0180 | 102.00 | 620 | 3.25 | 1 1/4" UNC | 450.00
9 2526 0200 | 112.00 | 570 | 3.28 | 1 1/4" UNC | 450.00
9 2526 0220 | 122.00 | 520 | 3.26 | 1 1/4" UNC | 450.00
9 2526 0240 | 132.00 | 470 | 3.20 | 1 1/4" UNC | 450.00
9 2526 0260 | 142.00 | 420 | 3.07 | 1 1/4" UNC | 450.00
9 2526 0280 | 152.00 | 390 | 3.06 | 1 1/4" UNC | 450.00
9 2526 0300 | 162.00 | 360 | 3.01 | 1 1/4" UNC | 450.00
9 2526 0320 | 172.00 | 340 | 3.02 | 1 1/4" UNC | 450.00
9 2526 0340 | 182.00 | 320 | 3.01 | 1 1/4" UNC | 450.00
9 2526 0360 | 192.00 | 300 | 2.98 | 1 1/4" UNC | 450.00
9 2526 0380 | 200.00 | 280 | 2.93 | 1 1/4" UNC | 450.00
9 2526 0390 | 212.00 | 270 | 2.97 | 1 1/4" UNC | 450.00
9 2526 0400 | 225.00 | 250 | 2.88 | 1 1/4" UNC | 450.00
9 2526 0410 | 232.00 | 220 | 2.65 | 1 1/4" UNC | 450.00
9 2526 0430 | 250.00 | 180 | 2.36 | 1 1/4" UNC | 450.00
9 2526 0480 | 300.00 | 130 | 2.04 | 1 1/4" UNC | 450.00

Drill rig
ORDER NO. | Description
9 4101 0090 | Drill rig for drill bits up to dia. 300 mm

Drill chucks
ORDER NO. | Description
9 2902 0280 | Adapter from 1 1/4" UNC female to M18x1.5 male
9 2902 0290 | Adapter from 1 1/4" UNC female to Weldonschaft 1 1/4" female
9 2902 0350 | Adapter from 1 1/4" UNC female to Weldon 3/4" female
9 2902 0240 | Adapter from R 1/2" for drill chuck type 9 2911 0040 and type 9 2911 0050
9 2911 0040 | Drill chuck for drill bit dia. 3 up to 16 mm
9 2911 0050 | Drill chuck for drill bit dia. 1.5 up to 13 mm

Extensions for drill bits
ORDER NO. | Description | Connection (machine side) | Connection (drill bit) | Length [mm]
2 1315 7020 | Extension | 1 1/4" UNC female | R1/2" female | 300.00
2 1319 7020 | Extension | 1 1/4" UNC female | 1 1/4" UNC male | 100.00
2 1318 7020 | Extension | 1 1/4" UNC female | 1 1/4" UNC male | 200.00
2 1314 7020 | Extension | 1 1/4" UNC female | 1 1/4" UNC male | 300.00
2 1316 7020 | Extension | 1 1/4" UNC female | 1 1/4" UNC male | 400.00
2 1322 7020 | Extension | 1 1/4" UNC female | 1 1/4" UNC male | 500.00

Service units
ORDER NO. | Description
9 2406 0260 | Service unit, portable, pressure regulator 3/4"
9 2406 0650 | Service unit, portable, protection housing, pressure regulator 3/4"

Hoses and more
ORDER NO. | Description
9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw coupling
9 2102 0020 | Claw coupling, metal sealing, 3/4” ID

Miscellaneous Accessories
ORDER NO. | Description
5 8002 9100 | Water tank 10l
2 1315 9500 | Tool set
5 1212 9000 | Carrying case
9 9902 0120 | Multi oil for cleaning and protection

Specifications

• Order number: 2 1328 0050
• ATEX: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Max drill bit diameter: 300 mm
• Gear stages: 3 (speeds 300/700/1,350 rpm)
• Torque stages: 90 / 56 / 29 Nm
• Power: 2.80 kW
• Air consumption: 3.50 m³/min
• Tool adapter centre dia.: 60 mm
• Total length: 516 mm
• Connection: R3/4" male
• Cooling connection: Gardena system
• Noise levels: LpA 85.0 dB(A), LWA 96.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 12.7 kg
• Fields of application: Energy and pipeline construction; Plant and mechanical construction
