- Spitznas Maschinenfabrik GmbH

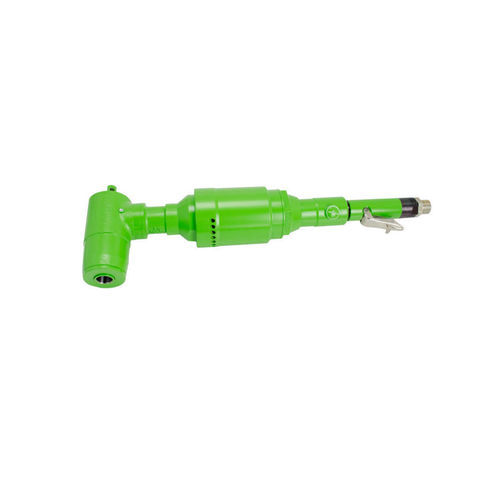

Pneumatic drill 2 1807 0010compactright-angle
Add to favorites
Compare this product
Characteristics
- Power source
- pneumatic
- Other characteristics
- compact, right-angle
- Rotational speed
260 rpm
(1,633.6 rad.min-1)- Power
1,920 W
- Torque
72 Nm
(53.1 ft.lb)- Drilling diameter
32 mm
(1.26 in)
Description
Product description
Pneumatic corner drill for drilling and reaming in steel with MT3 tool holder. Designed for assembly and on-site operations in energy and pipeline construction, metal and steel fabrication, and plant and mechanical engineering. Compact unit with right-hand rotation, safety lever valve and integrated feed spindle. Suitable for drilling up to 32 mm and reaming up to 26 mm.
Main attributes
Technical data
Accessories
Service units
Hoses and more
Miscellaneous accessories
Technical specifications
Pneumatic corner drill for drilling and reaming in steel with MT3 tool holder. Designed for assembly and on-site operations in energy and pipeline construction, metal and steel fabrication, and plant and mechanical engineering. Compact unit with right-hand rotation, safety lever valve and integrated feed spindle. Suitable for drilling up to 32 mm and reaming up to 26 mm.
Main attributes
- Order Number: 2 1807 0010
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Tool holder / Shank: MT3
- Actuation / Valve type: Safety lever valve
- Direction of rotation: right
Technical data
- Order no.: 2 1807 0010
- Energy source: Pneumatic
- Operating pressure: 6 bar
- Shank: MT3
- Valve type: Safety lever valve
- Direction of rotation: right
- Drilling capacity in steel: 32.00 mm
- Reaming capacity in steel: 26.00 mm
- Torque: 72 Nm
- Speed (under load): 260 rpm
- Power: 1.92 kW
- Air consumption: 1.80 m³/min
- Height with feed spindle: 190.00 mm
- Connection: R3/8" male
- Noise level LpA: 92.8 dB(A)
- Noise level LWA: 103.0 dB(A)
- Vibration level: 3.35 m/s²
- Weight: 11.5 kg
- Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
Accessories
Service units
- 9 2406 0260 — Portable service unit with pressure regulator 3/4"
- 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
- 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"
Hoses and more
- 9 3610 0410 — Pneumatic hose ID 13 mm, 2.5 m length, screw-on claw coupling
- 9 3610 0420 — Pneumatic hose ID 16 mm, 2.5 m length, screw-on claw coupling
- 9 3610 0430 — Pneumatic hose ID 19 mm, 2.5 m length, screw-on claw coupling
- 9 2102 0020 — Claw coupling, metal sealing, 3/4” ID
Miscellaneous accessories
- 9 9902 0120 — Multi oil for cleaning and protection
Technical specifications
- Drilling capacity (steel): 32.00 mm
- Reaming capacity (steel): 26.00 mm
- Torque: 72 Nm
- Speed (under load): 260 rpm
- Power: 1.92 kW
- Air consumption: 1.80 m³/min
- Operating pressure: 6 bar
- Tool holder / Shank: MT3
- Valve type: Safety lever valve
- Direction of rotation: right
- Height with feed spindle: 190.00 mm
- Connection: R3/8" male
- Noise level LpA: 92.8 dB(A)
- Noise level LWA: 103.0 dB(A)
- Vibration level: 3.35 m/s²
- Weight: 11.5 kg
- Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
