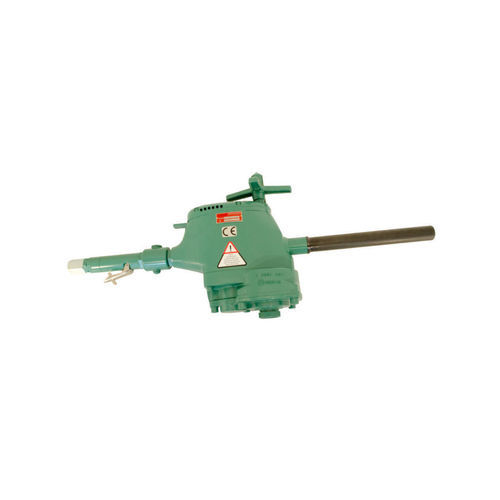

Pneumatic drill 2 2502 0010

variable-speedATEX

Product overview
Flexible pneumatic drill equipped with a safety lever valve and an adjustable feed spindle providing infinitely variable speed and drilling depth. Suitable for clockwise and anti-clockwise rotation. ATEX certified: II2GExhIIBT6Gb.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT4
• Valve type: Safety lever valve
• Direction of rotation: clockwise/anti-clockwise
• ATEX: II2GExhIIBT6Gb

Technical data
ORDER NO. : 2 2502 0010
ATEX Specification : II2GExhIIBT6Gb
Energy source : Pneumatic
Operating pressure : 6 bar
Drill chuck : MT4
Valve type : Safety lever valve
Direction of rotation : clockwise/anti-clockwise
Drilling dia. capacity in steel : 50.00 mm
Reaming dia. capacity in steel : 32.00 mm
Torque : 225 Nm
Speed (free) : 80 rpm
Power : 1.85 kW
Air consumption : 2.00 m³/min
Height with feed spindle : 335.00 mm
Connection : R3/4" female
Noise level LpA : 87.0 dB(A)
Noise level LWA : 98.0 dB(A)
Vibration level : <2.5 m/s²
Weight : 17.2 kg
Fields of application / branch : Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories (selection)
Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0630 — Portable service unit with protection housing and pressure regulator 1/2"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses and more

• 9 3610 0410 — Pneumatic hose ID 13.00 mm, length 2.5 m, screw-on claw coupling
• 9 3610 0420 — Pneumatic hose ID 16.00 mm, length 2.5 m, screw-on claw coupling
• 9 3610 0430 — Pneumatic hose ID 19.00 mm, length 2.5 m, screw-on claw coupling
• 9 2102 0020 — Claw coupling, metal sealing, 3/4" ID

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection

Technical specifications

• Order number: 2 2502 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Drill chuck: MT4
• Valve type: Safety lever valve (lever valve)
• Direction of rotation: clockwise/anti-clockwise
• Drilling diameter capacity in steel: 50.00 mm
• Reaming diameter capacity in steel: 32.00 mm
• Torque: 225 Nm
• Speed (free): 80 rpm
• Power: 1.85 kW
• Air consumption: 2.00 m³/min
• Height with feed spindle: 335.00 mm
• Connection: R3/4" female
• Noise level LpA: 87.0 dB(A)
• Noise level LWA: 98.0 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 17.2 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
